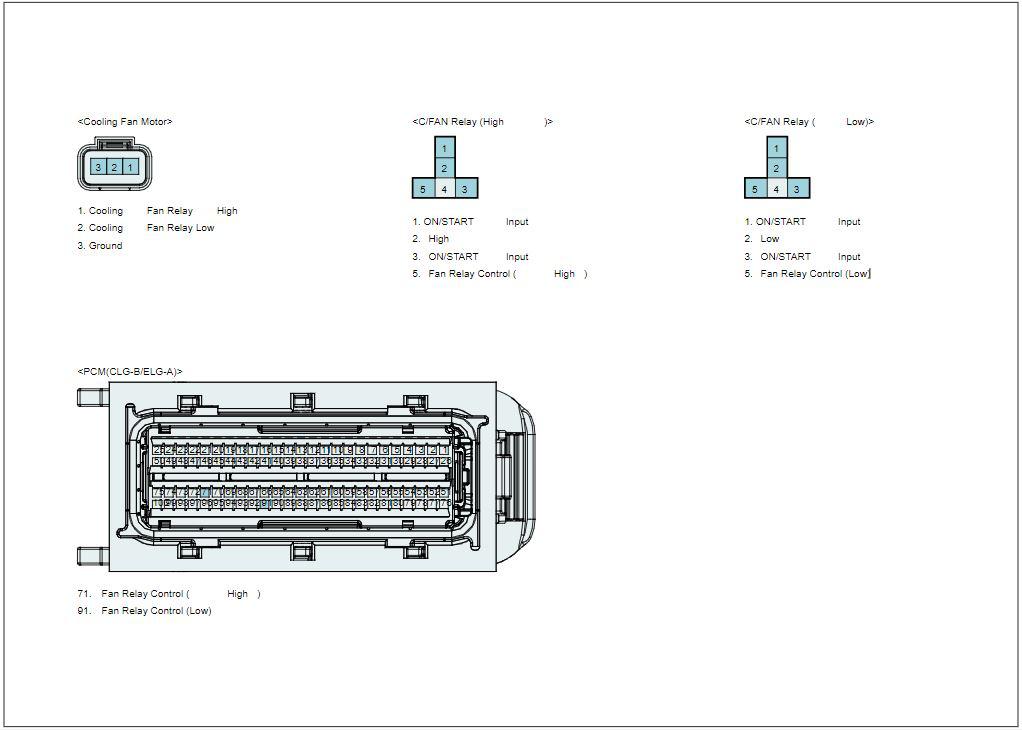

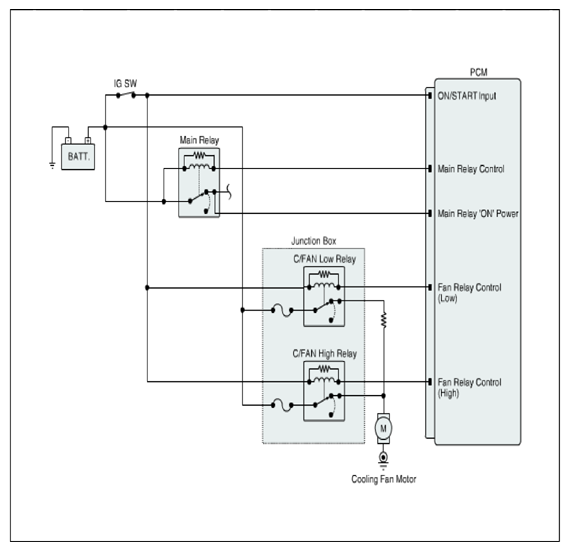

Home >> Hyundai >> 2014 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) >> DTC P0480: Fan 1 Control Circuit >> General Information >> Diagnostic Circuit Diagram
