Signal Circuit Inspection

Check voltage
1. IG "OFF" and disconnect OTS connector.
2. IG "ON"
3. Measure voltage between signal terminal of OTS harness connector and chassis ground.
  Specification: Approx. 3.3V

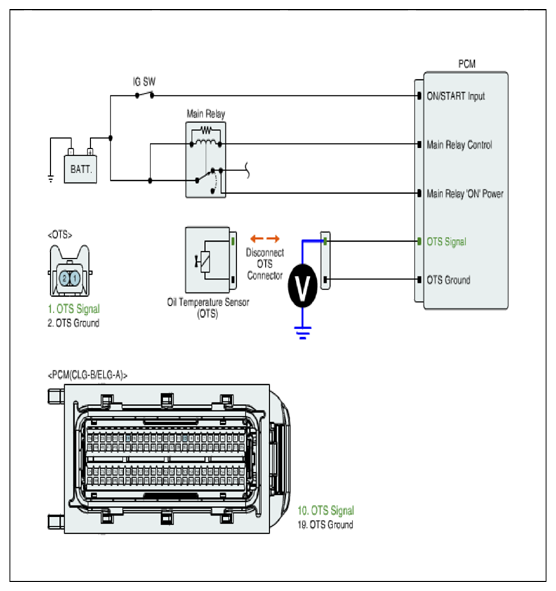

  Fig 1: Measuring Voltage Between Signal Terminal Of OTS Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair short to ground in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
