Component Inspection
- Check ECTS resistance
- IG "OFF" and disconnect ECTS connector.

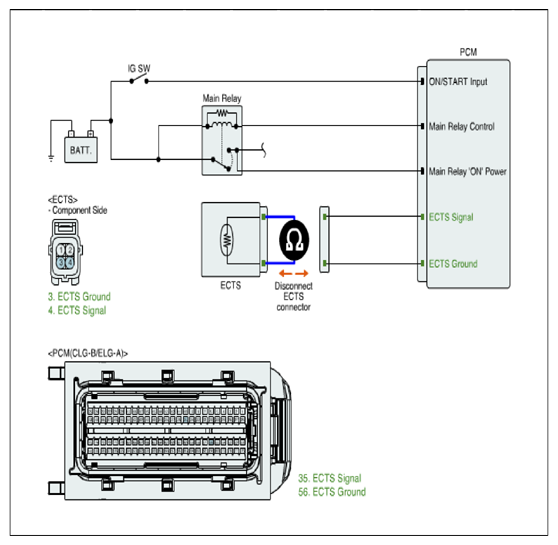

- Measure resistance between signal and ground terminals of ECTS connector after checking out the temperature of ECTS with GDS (Component Side)TEMPERATURE AND RESISTANCE SPECIFICATION
Temp. (°C) Resistance (kΩ) Temp. (°C) Resistance (kΩ) -40 48.14 40 1.15 -20 14.13 ~ 16.83 60 0.59 0 5.79 80 0.32 20 2.31 ~ 2.59 - Is the measured resistance within specification?
YES
- Clear DTC and Test drive under enable conditions above-mentioned. After the test, If this DTC is set, recheck it thoroughly. If not, it is intermittent fault, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good ECTS and check for proper operation. If the problem is corrected, Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
