Control Circuit Inspection

Check short to ground
1. IG "OFF" & Disconnect HO2S (B1/S2) connector.
2. Measure resistance between control terminal of HO2S (B1/S2) heater harness connector and chassis ground.
  Specification: Infinite

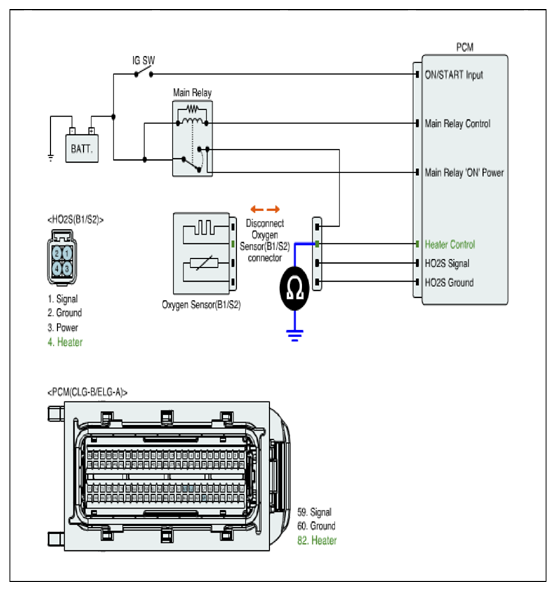

  Fig 1: Measuring Resistance Between Control Terminal Of HO2S (B1/S2) Heater Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?
  YES
  - Go to "Control Circuit Inspection" procedure.
  NO
  - Repair short to ground in HO2S (B1/S2) heater control circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check open in harness
1. IG "OFF" and disconnect HO2S (B1/S2) and PCM connector.
2. Measure resistance between control terminal of HO2S (B1/S2) heater harness connector and heater control terminal of PCM harness connector.
  Specification: Approx. below 1Ω

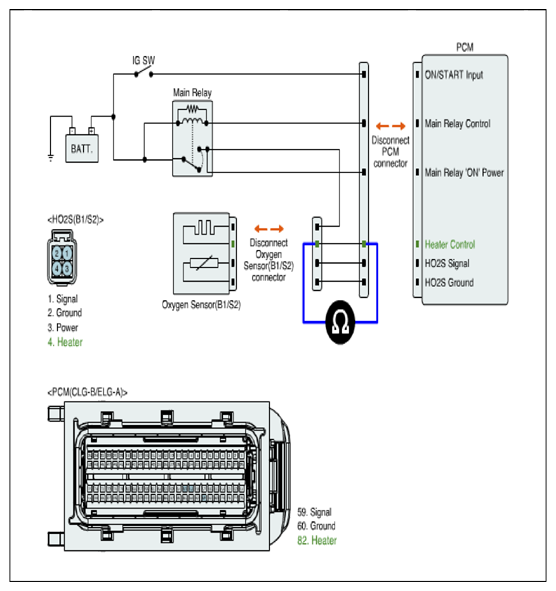

  Fig 2: Measuring Resistance Between Control Terminal Of HO2S (B1/S2) Heater Harness Connector And Heater Control Terminal Of PCM Harness Connector
  Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair open in HO2S (B1/S2) heater control circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
