Fuel Pump

  1. Turn the ignition switch OFF and then remove battery (-) cable.
  2. Remove the fuel pump assembly.
  3. Check motor operation by fuel pump connector (A) connecting power (No. 4) and ground (No. 5).

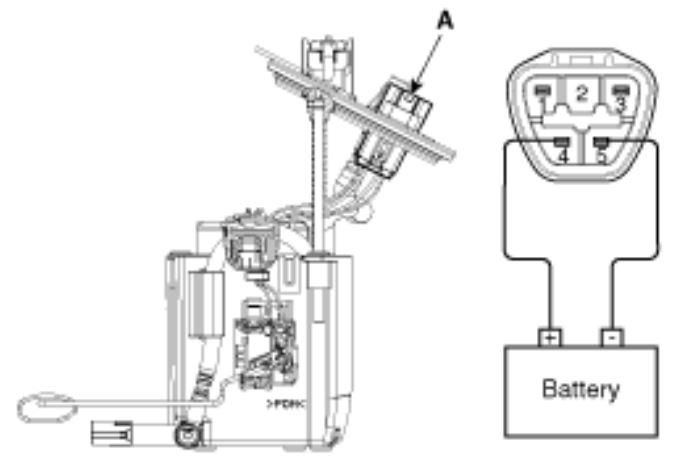

    Fig 1: Checking Motor Operation By Fuel Pump Connector Connecting Power (No. 4) And Ground (No. 5)
    G08809764Courtesy of HYUNDAI MOTOR AMERICA
    Pin No. Description
    1 Fuel sender ground
    2 -
    3 Fuel sender signal
    4 Fuel pump motor (+)
    5 Fuel pump motor ground
