Schematic Diagram

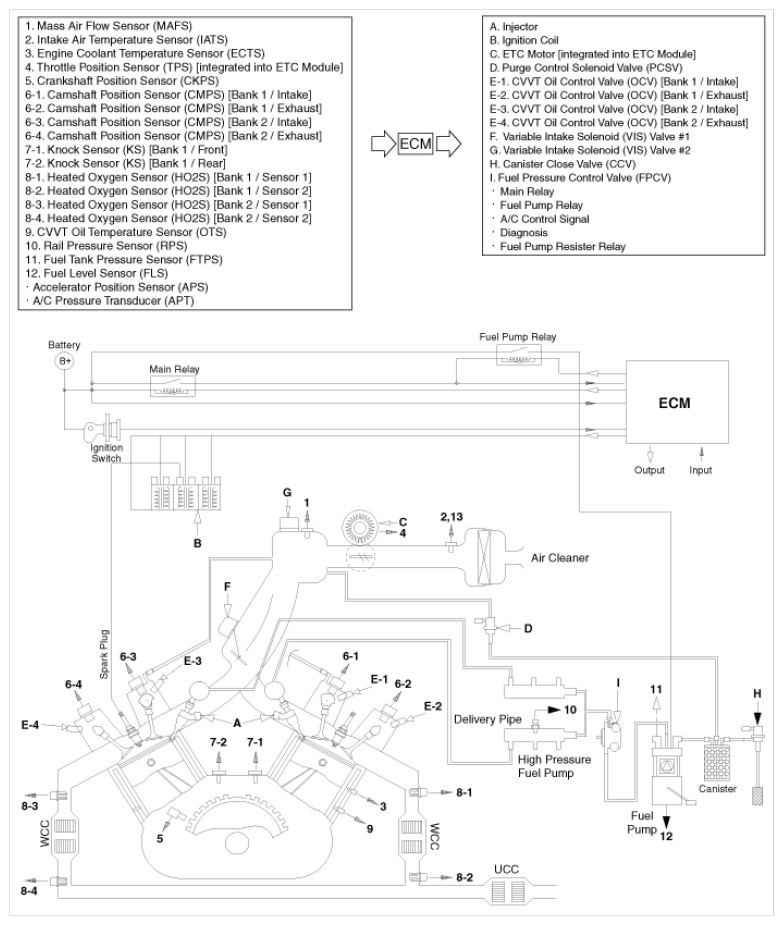

Fig 1: Emission Control System Schematic Diagram

G08809564

Courtesy of HYUNDAI MOTOR AMERICA
