Circuit Diagram

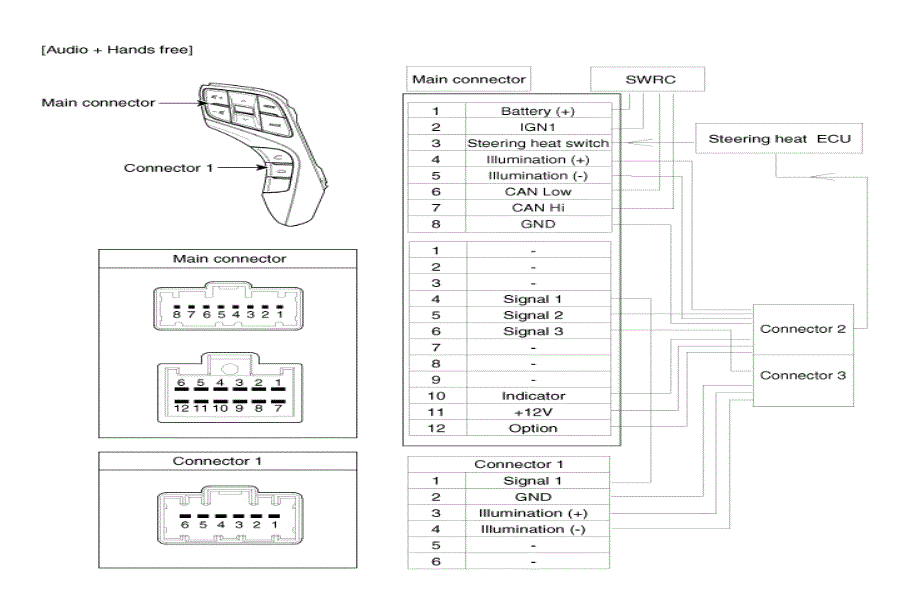

Fig 1: AVN Remote Controller Circuit Diagram (Audio And Hands Free)
G08810960Courtesy of HYUNDAI MOTOR AMERICA

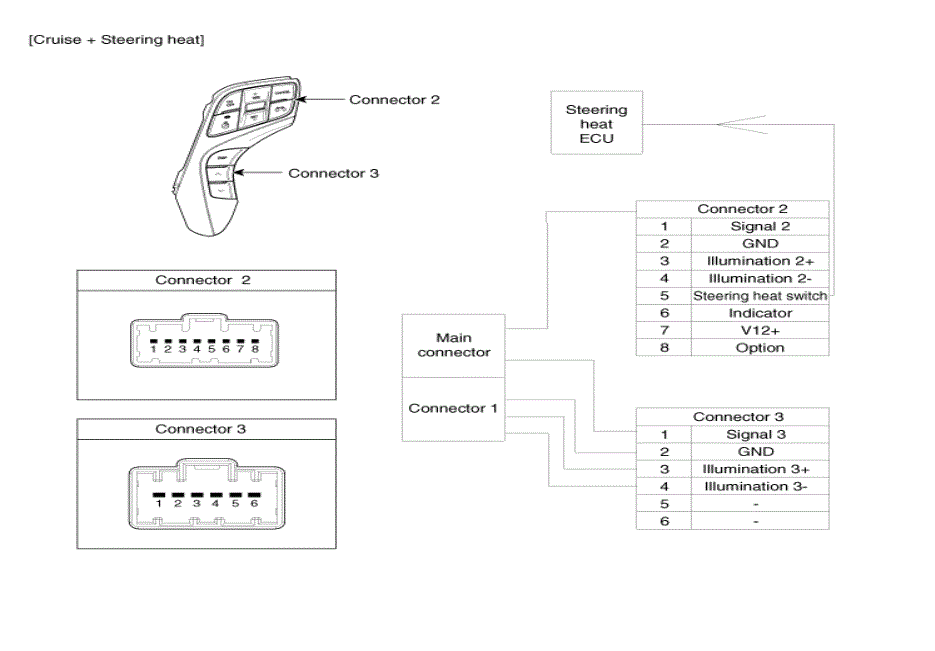

Fig 2: AVN Remote Controller Circuit Diagram (Cruise And Steering Wheel)
G08810961Courtesy of HYUNDAI MOTOR AMERICA
