Component Inspection

Check internal errors of CAN communication units.

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Replace SCM with the new one and check DTC again.

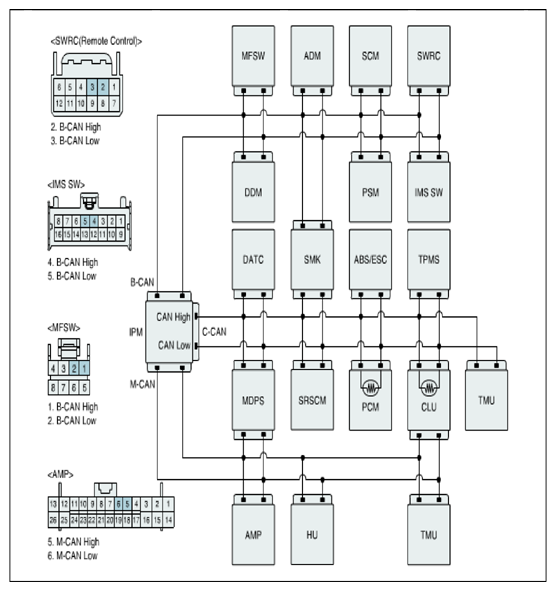

   Fig 1: Communication Modules Circuit Diagram

   Courtesy of HYUNDAI MOTOR AMERICA

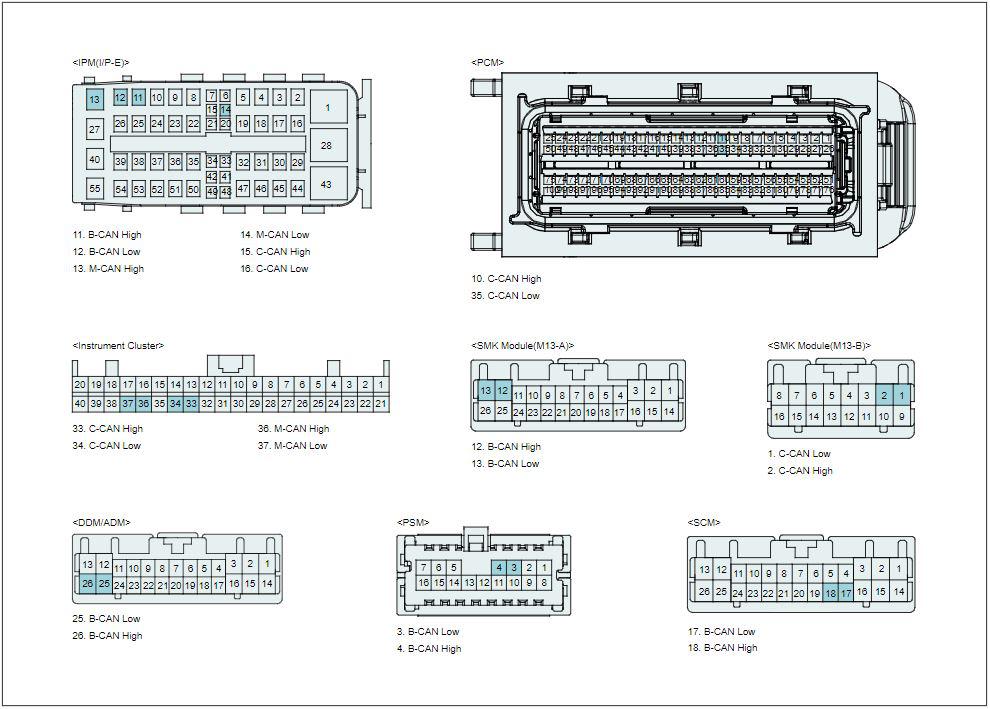

   Fig 2: Communication Modules Connector Terminal Identification

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the code erased?

   YES

   • Substitute with a known - good unit and check for proper operation.

     If the problem is corrected, replace the unit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
