Monitor Scantool Data

  1. Connect GDS.
  2. IG "ON" and engine "OFF".
  3. Select "DTC Analysis" mode.
  4. After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " chart).

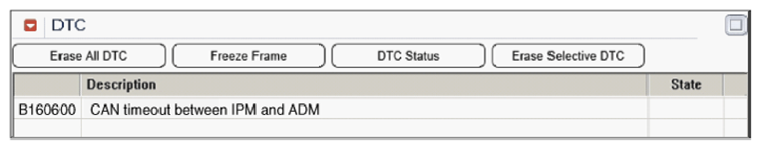

    Fig 1: Display - DTC CAN Timeout Between IPM And ADM
    G08815788Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the same DTC occurred again?

    YES

    • Go to next procedure.

    NO

    • Fault is intermittent caused by poor contact in IPM's and/or ADM's connector or was repaired and IPM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
