Signal Waveform & Data

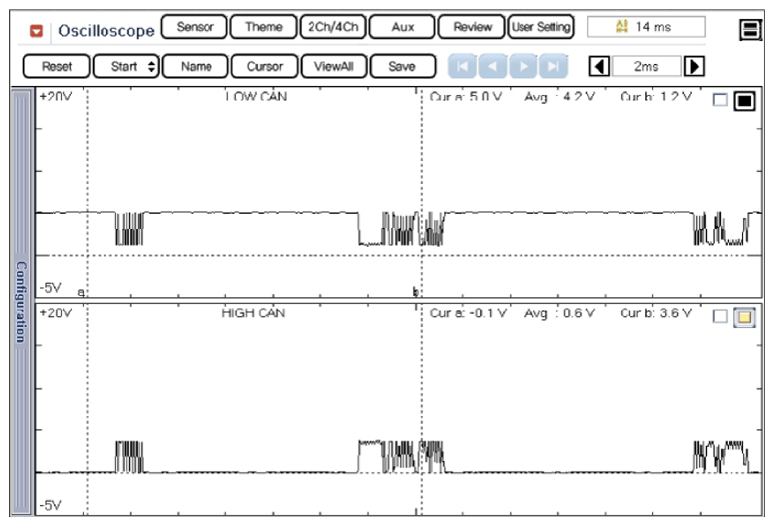

Fig 1: CAN Low/High Signal Waveform

G08815760

Courtesy of HYUNDAI MOTOR AMERICA

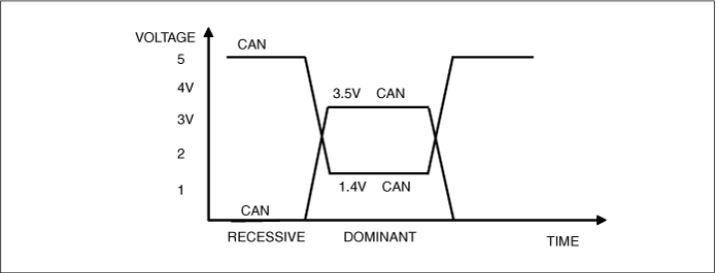

Fig 2: CAN BUS Voltage Level (Low Speed CAN)

G08815761

Courtesy of HYUNDAI MOTOR AMERICA
