Home >> Hyundai >> 2014 >> Accent GLS, Automatic Trans >> Repair and Diagnosis >> External Pages >> Different car >> Section 71 (Cluster Module Diagnosis) >> DTC B1020-55: TPMS Present Error >> Component Location

Component Location

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

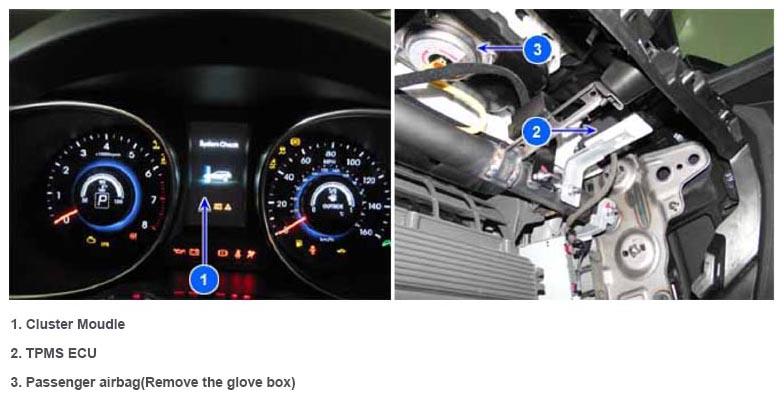

Fig 1: Identifying Cluster Module, TPMS ECU And Passenger Airbag (Remove Glove Box)
G09369234Courtesy of HYUNDAI MOTOR AMERICA
