Repair Procedures: Inspection: Clockspring

WARNING: This page is about a different car, the 2012 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. If, as a result of the following checks, even one abnormal point is discovered, replace the clock spring with a new one.
  2. Check connectors and protective tube for damage, and terminals for deformities.

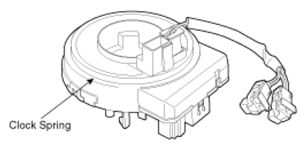

    Fig 1: Identifying Clock Spring With Connectors
    G06847441Courtesy of HYUNDAI MOTOR CO.
