Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the driver airbag module by putting in a flat tool (ø5mm) into the guide hole and then press the omega spring.

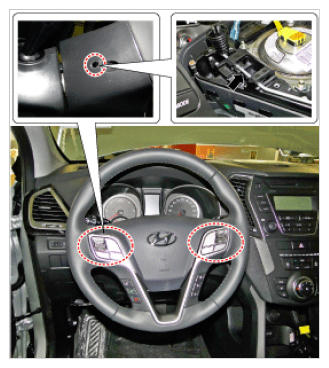

    Fig 1: Identifying Driver Airbag Module
    G09368263Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the wiring fixing clip (C) and disconnect the horn connector (A).

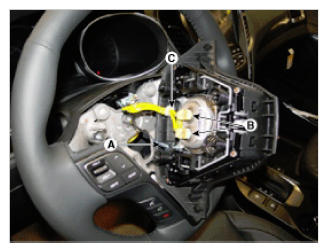

    Fig 2: Identifying Horn Connector And Wiring Fixing Clip
    G09368264Courtesy of HYUNDAI MOTOR AMERICA
  4. Release the connector locking pin, then disconnect the driver airbag module connector (C).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel and steering wheel column shroud.

    Refer to STEERING COLUMN AND SHAFT .

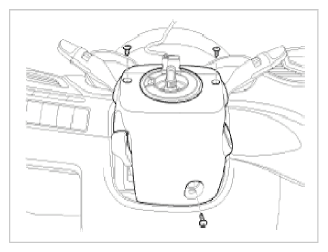

    Fig 3: Identifying Steering Wheel And Column Shroud
    G09368265Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the clock spring and horn connector, then remove the clock spring.

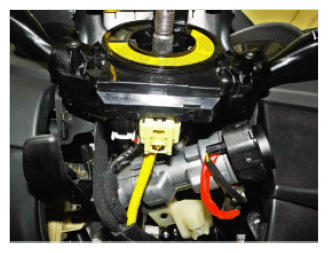

    Fig 4: Identifying Clock Spring And Horn Connector
    G09368266Courtesy of HYUNDAI MOTOR AMERICA
