Clock Spring

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. If, as a result of the following checks, even one abnormal point is discovered, replace the clock spring with a new one.
  2. Check connectors and protective tube for damage, and terminals for deformities.

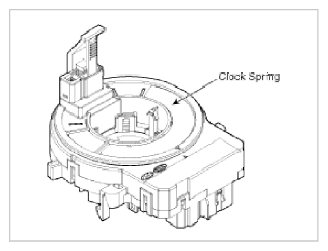

    Fig 1: Identifying Clock Spring
    G09368267Courtesy of HYUNDAI MOTOR AMERICA
