Signal Waveform & Data

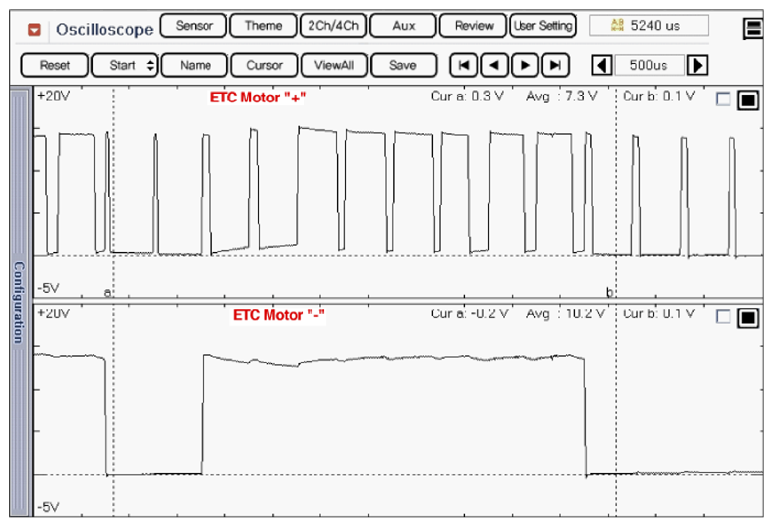

Fig 1: ETC Motor Signal Waveform With Acceleration
G08802649Courtesy of HYUNDAI MOTOR AMERICA

ECM controls ETC motor (DC motor) to operate the throttle valve.

ETC motor operate and change the throttle valve position in order to open the closed throttle valve under the acceleration condition.
