Repair Procedures: Removal

  1. Remove the air duct.

    (Refer to "AIR CLEANER ")

  2. Remove the battery and the battery tray.

    (Refer to "BATTERY ")

  3. Remove the under cover.
  4. Drain the coolant.

    (Refer to "COOLANT ")

  5. Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.

    Tightening torque:

    38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

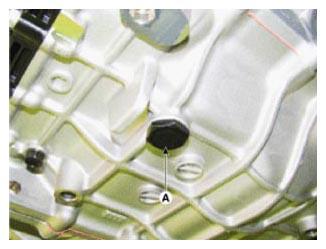

    Fig 1: Identifying Drain Plug
    G09150659Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The gasket of the drain plug use new one.
  6. Remove the ATF Injection hole (eyebolt) (A).

    Tightening torque:

    2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

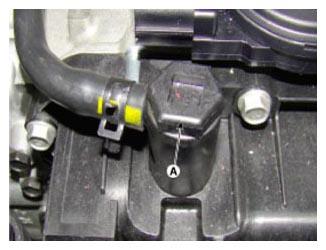

    Fig 2: Identifying ATF Injection Hole (Eyebolt)
    G09150660Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The O-Ring (A) of the eyebolt use new one.

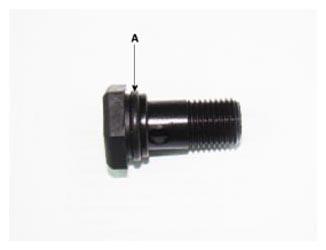

    Fig 3: Identifying Eyebolt O-Ring
    G09150661Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the valve body cover (A).

    Tightening torque:

    (A) 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

    Fig 4: Identifying Valve Body Cover
    G09150662Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Use new valve body gasket (A).
    Fig 5: Identifying Valve Body Gasket
    G09150663Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the bolts (C) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

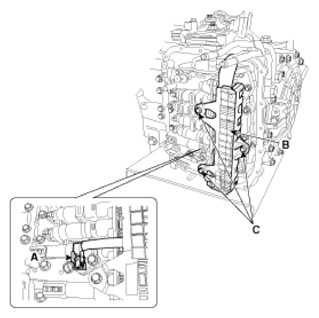

    Fig 6: Identifying Solenoid Valve Connector, Oil Temperature Sensor Connector And Bolts
    G09150664Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the solenoid valve support bracket (A).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    Fig 7: Identifying Solenoid Valve Support Bracket
    G09150665Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the solenoid valve (A).
    Fig 8: Identifying Solenoid Valve
    G09150666Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When installing, apply the ATF oil or white Vaseline to the O-ring (A) not to be damaged.
    Fig 9: Identifying Solenoid O-rings
    G09150667Courtesy of HYUNDAI MOTOR AMERICA
