Circuit Diagram: (A/T)

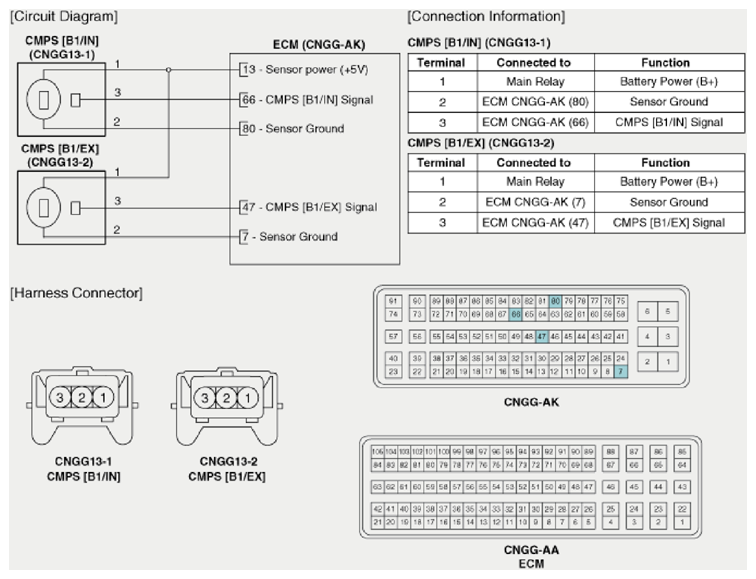

Fig 1: Crankshaft Position Sensor Circuit Diagram (A/T)

G09151084

Courtesy of HYUNDAI MOTOR AMERICA
