Variant coding Procedure

On-Line type on GDS
1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

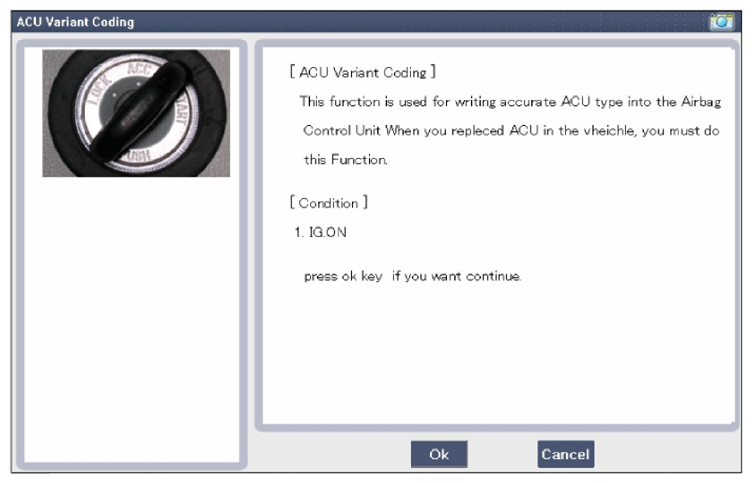

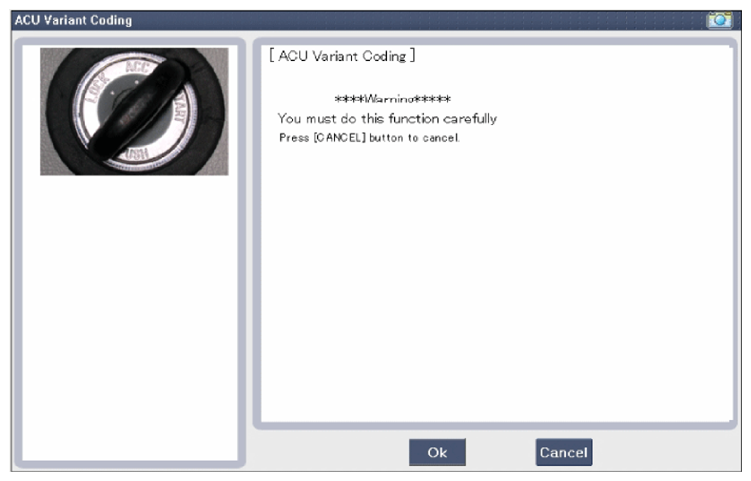

1. Initial ACU Variant Coding screen

  Fig 1: Display - Initial ACU Variant Coding Screen (On-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

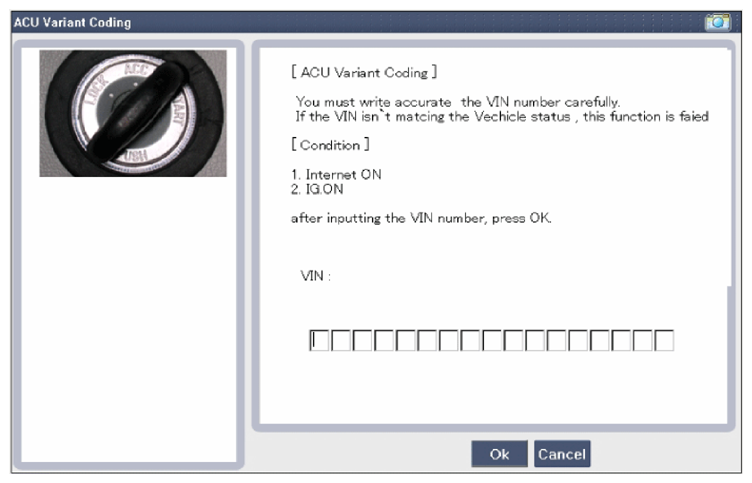

2. VIN Code entering screen

  Fig 2: Display - VIN Code Entering Screen (On-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

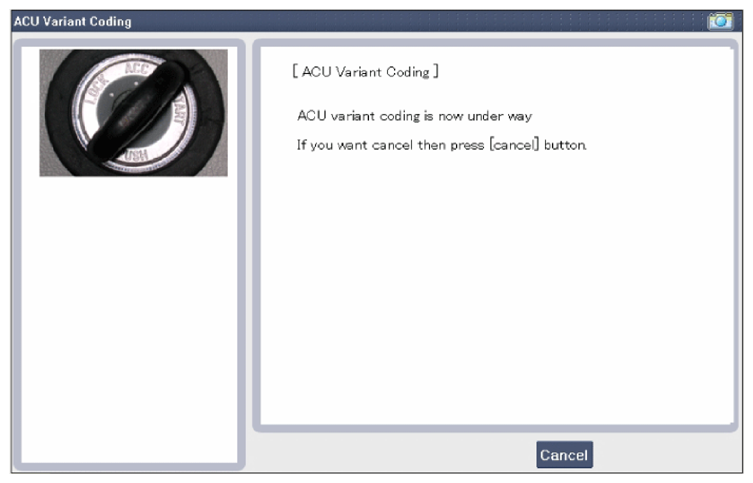

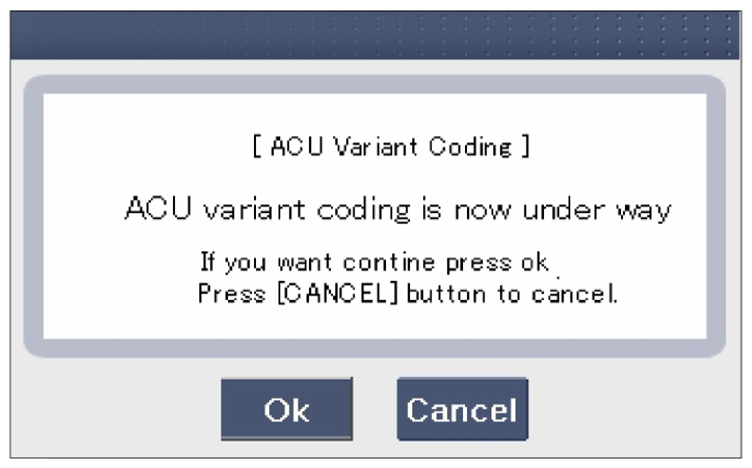

3. Variant coding's proceeding screen-1

  Fig 3: Display - Variant Coding's Proceeding Screen-1 (On-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

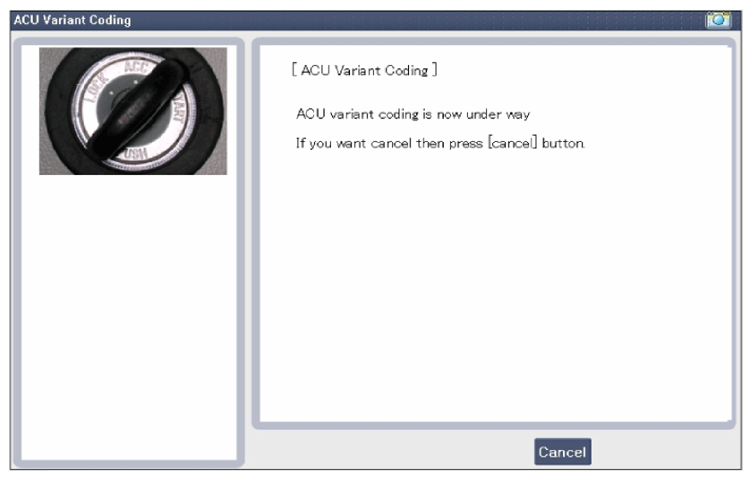

4. Variant coding's proceeding screen-2

  Fig 4: Display - Variant Coding's Proceeding Screen-2 (On-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

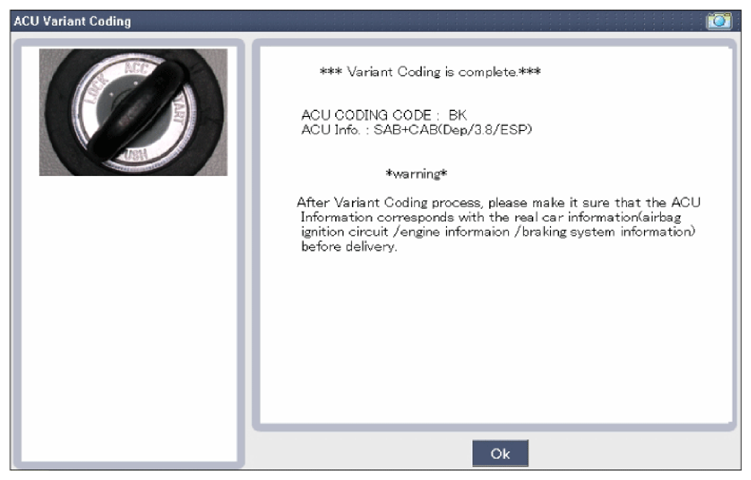

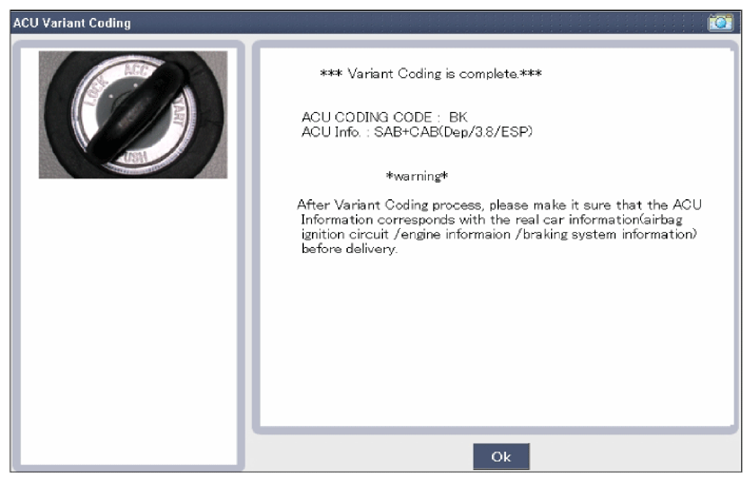

5. Variant coding is completed

  Fig 5: Display - Variant Coding Completed Screen (On-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

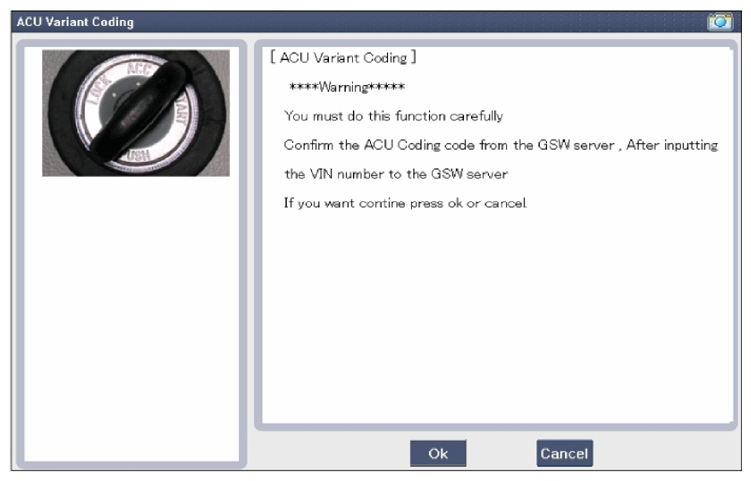

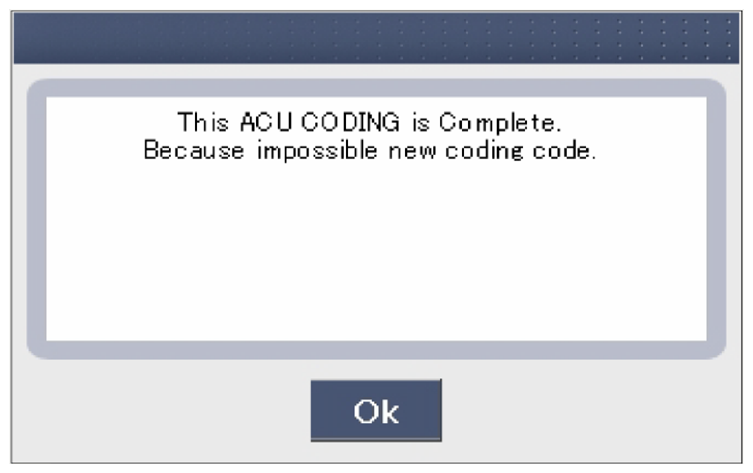

NOTE:
1. This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.

  Fig 6: Display - Coding Confirmation Screen (On-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

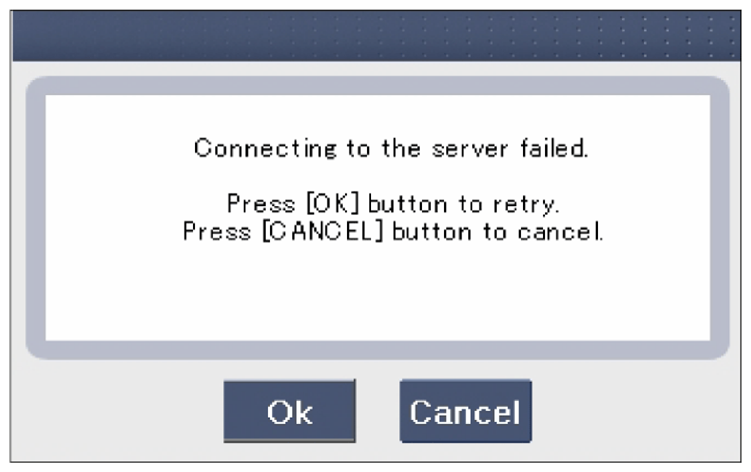

2. Screen of communication failure

  Fig 7: Display - Communication Failure Screen (On-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA
Off-line type on GDS (This can be used when not connecting to Internet)
1. Initial ACU Variant Coding screen

  Fig 8: Display - Initial ACU Variant Coding Screen (Off-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

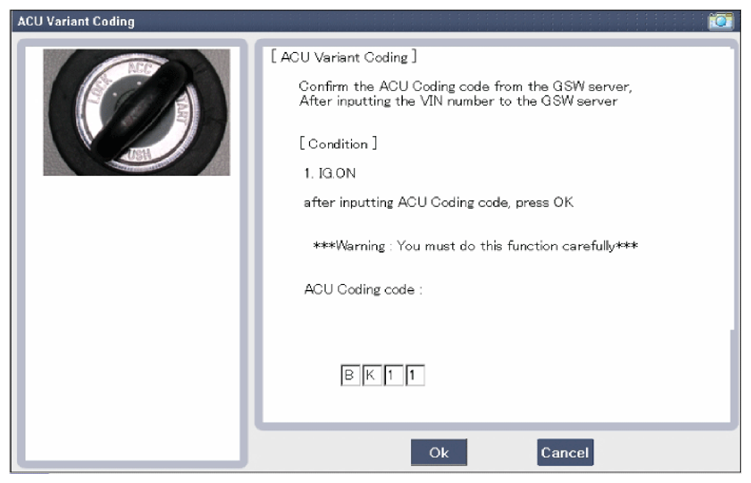

2. ACU Coding Code entering screen

  Fig 9: Display - ACU Code Entering Screen (Off-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA
3. Screen of rechecking ACU Coding code's entering

  Fig 10: Display - Rechecking ACU Coding (Off-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

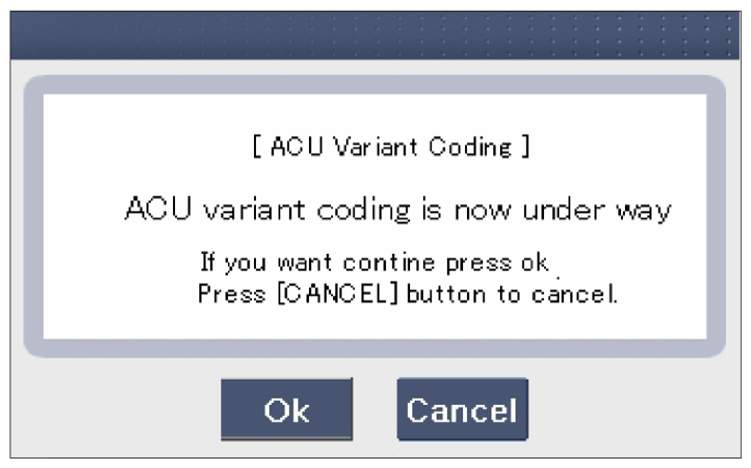

4. Variant coding's proceeding screen-1

  Fig 11: Display - Variant Coding's Proceeding Screen-1 (Off-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA
5. Variant coding's proceeding screen-2

  Fig 12: Display - Variant Coding'S Proceeding Screen-2 (Off-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA
6. Variant coding is completed

  Fig 13: Display - Variant Coding Completed Screen (Off-Line Type On GDS)
  Courtesy of HYUNDAI MOTOR AMERICA

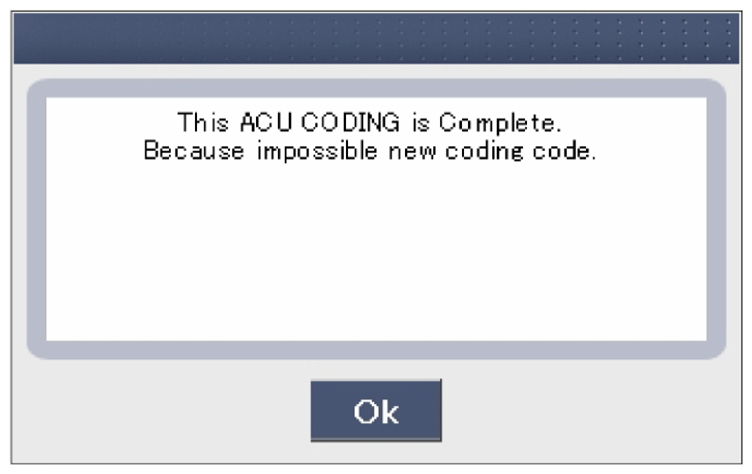

NOTE:
1. This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.
Fig 14: Display - Coding Confirmation Screen (Off-Line Type On GDS)
Courtesy of HYUNDAI MOTOR AMERICA
