Repair procedures: Removal

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to the "CRASH PAD ")

  3. Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening the bolt.

    [USA]

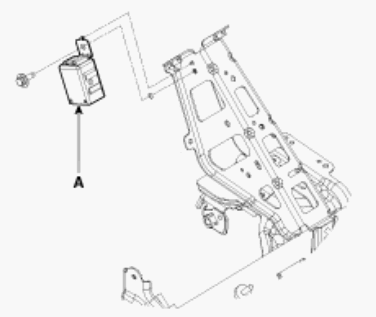

    Fig 1: Identifying Immobilizer Unit (USA)
    G08811892Courtesy of HYUNDAI MOTOR AMERICA

    [CANADA]

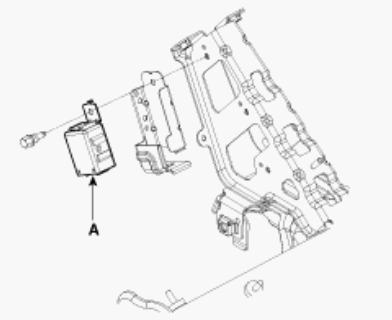

    Fig 2: Identifying Immobilizer Unit (Canada)
    G08811893Courtesy of HYUNDAI MOTOR AMERICA
