Repair Procedures: Removal

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the glove box housing. (Refer to the "CRASH PAD ")
  3. Disconnect the passenger airbag connector (A) and remove the PAB mounting bolt (B).

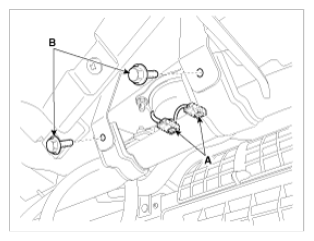

    Fig 1: Identifying Passenger Airbag Connectors And Mounting Bolts
    G08807512Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the crash pad.

    (Refer to the "CRASH PAD ")

    NOTE: Replace the crash pad which is damaged while PAB is deployed.
  5. Remove the mounting bolts from the crash pad. Then remove the passenger airbag.

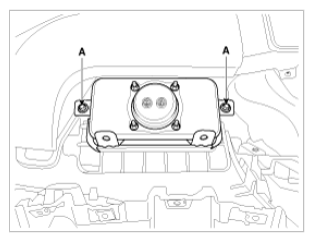

    Fig 2: Identifying Crash Pad Mounting Bolts
    G08807513Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The removed airbag module should be stored in a clean, dry place with the airbag cushion up.
