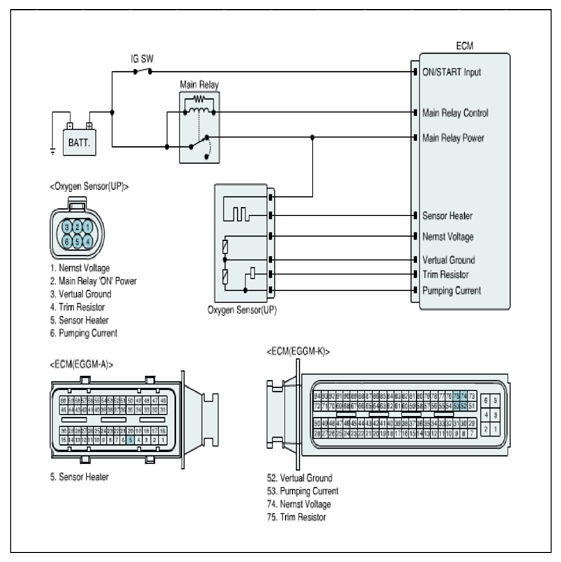

Home >> Hyundai >> 2013 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) - Non-Turbo >> DTC P2251: O2 Sensor Reference Ground Circuit Open (Bank 1 Sensor 1) >> General Information >> Diagnostic Circuit Diagram
