Components Location

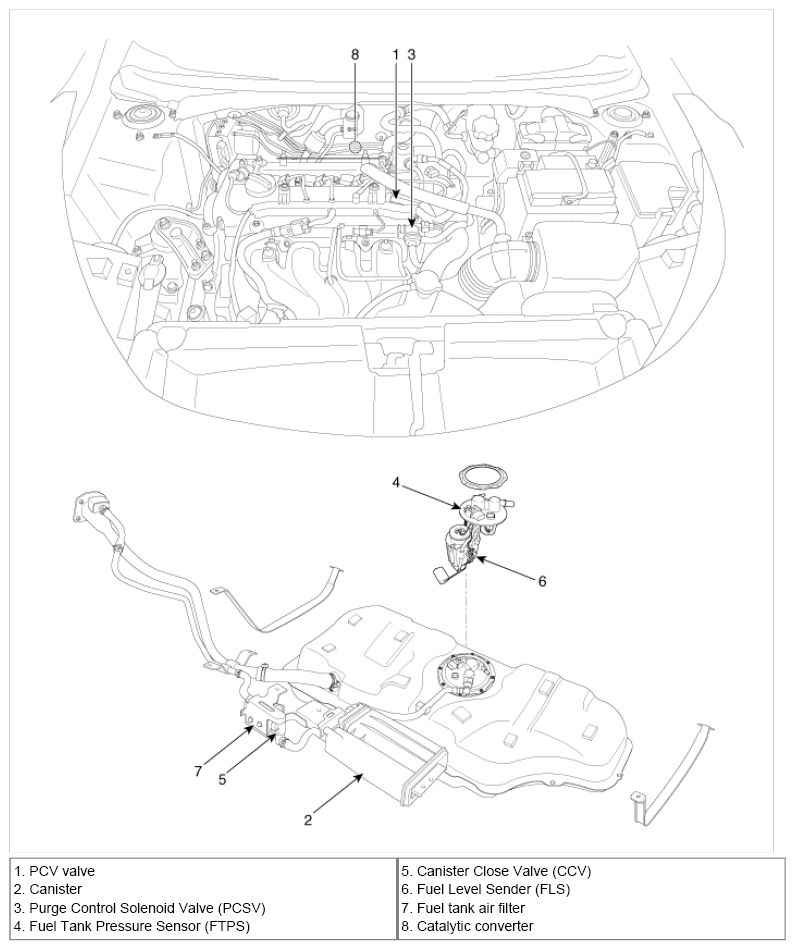

Fig 1: Identifying Emission Control System Components (1 Of 2)
G08806938Courtesy of HYUNDAI MOTOR AMERICA

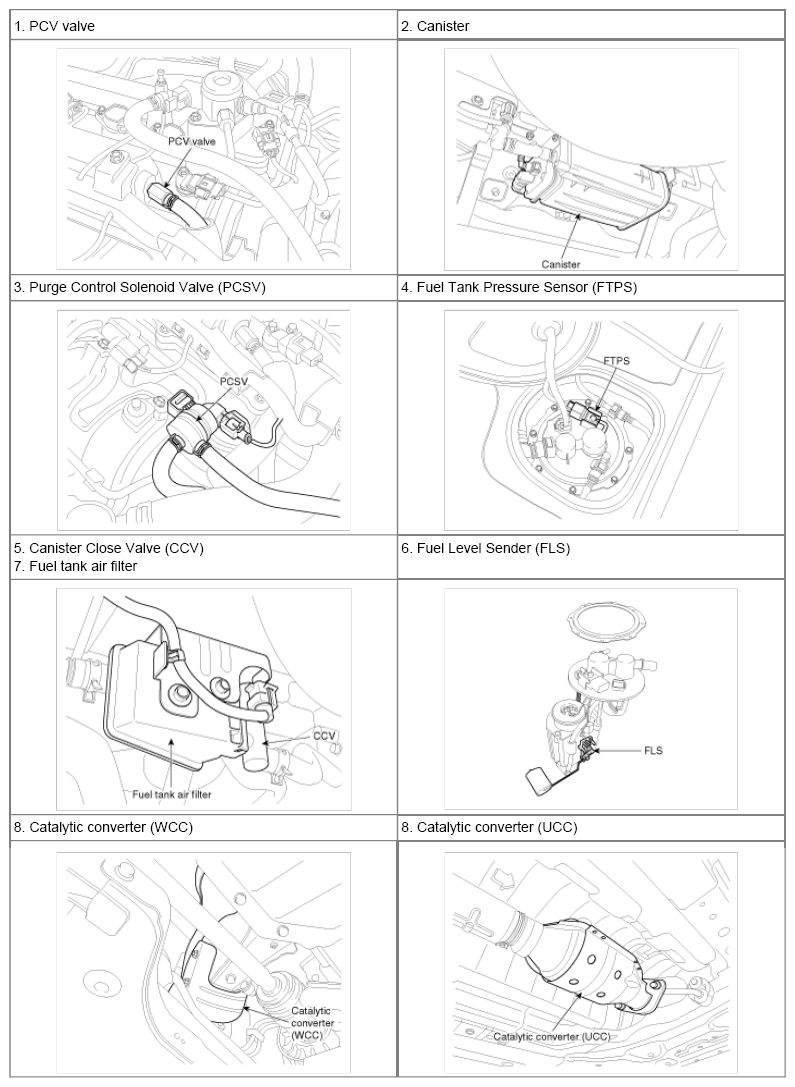

Fig 2: Identifying Emission Control System Components (2 Of 2)
G08806939Courtesy of HYUNDAI MOTOR AMERICA
