Passenger power window switch

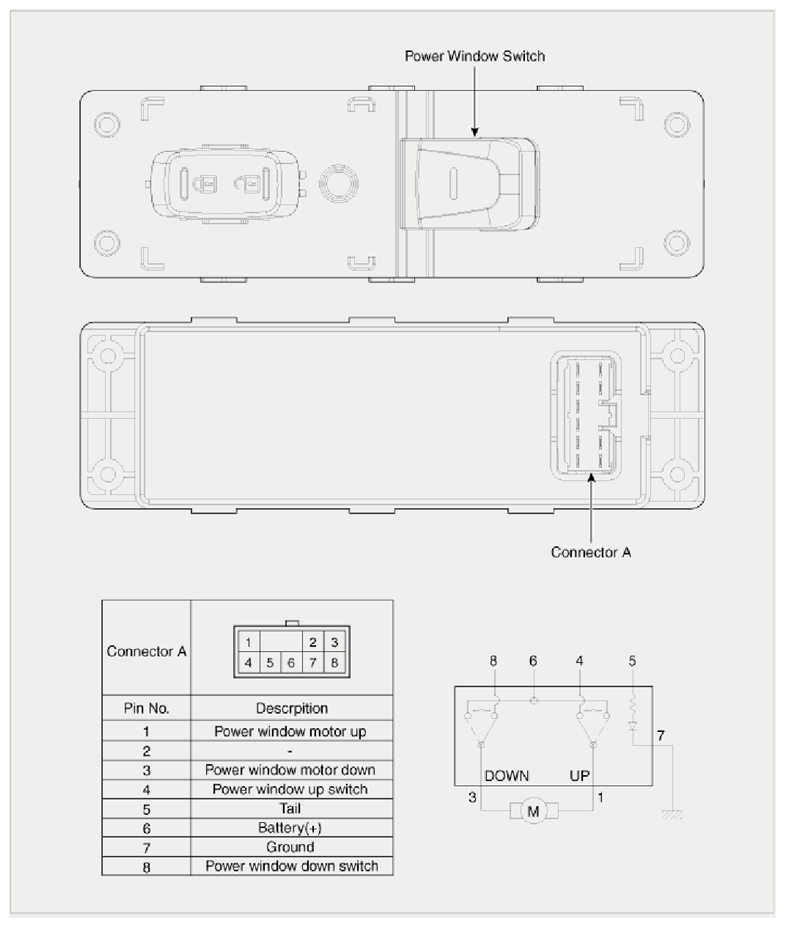

Fig 1: Identifying Passenger Power Window Switch And Connector A

G09135179

Courtesy of HYUNDAI MOTOR AMERICA
