Section 12 (General Information - Emission Control System - Turbo)
>>
Components and Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

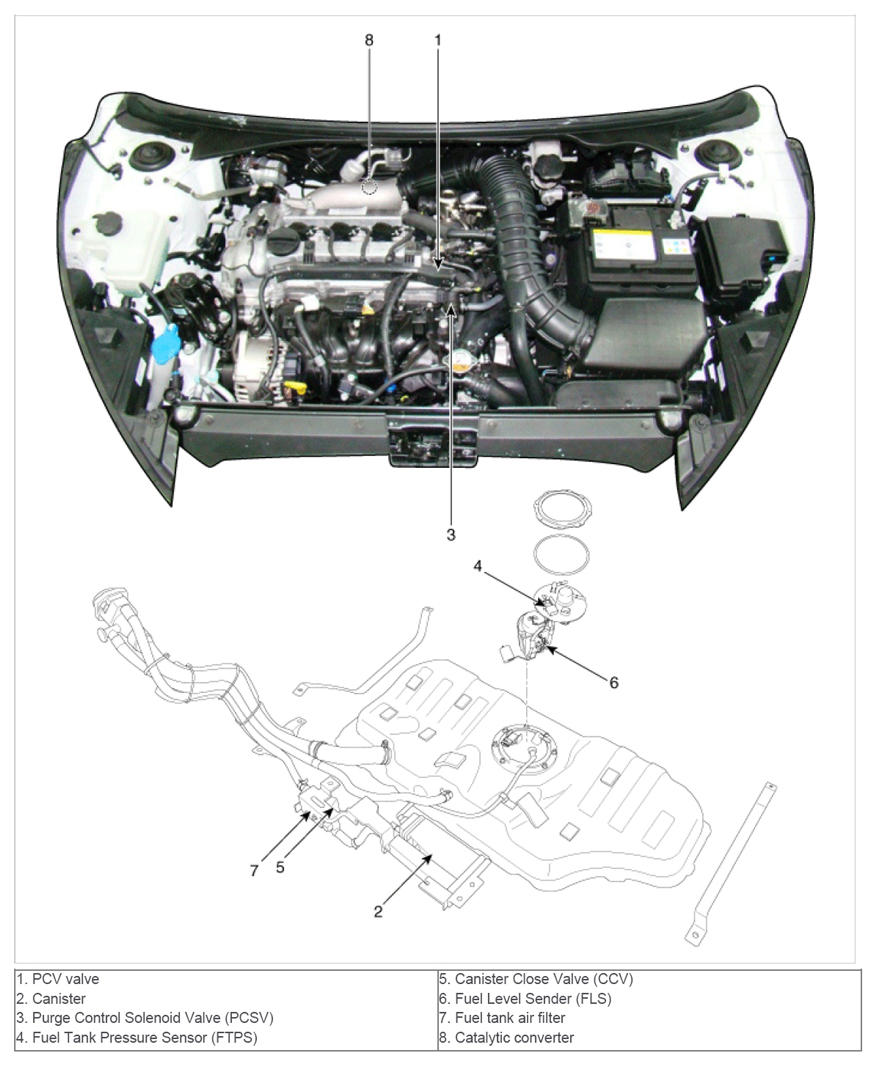

Fig 1: Emissions Control System Components Location (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

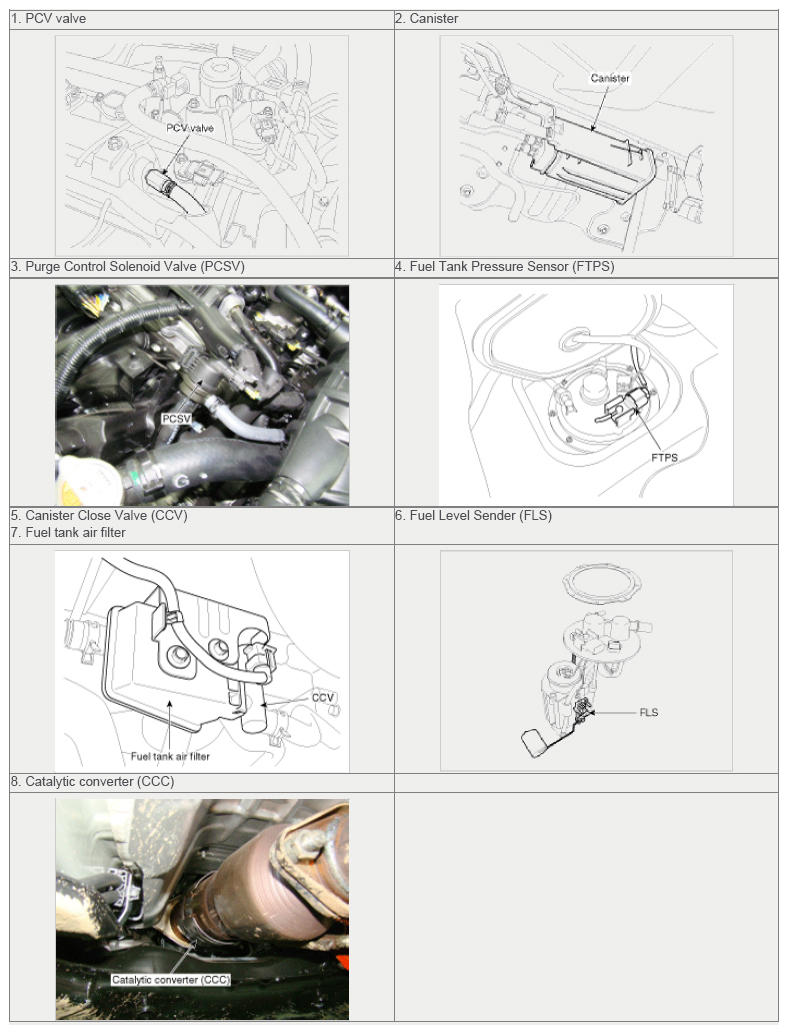

Fig 2: Emissions Control System Components Location (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
