Repair Procedures: Removal

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim.

    (Refer to the "INTERIOR ")

  3. Disconnect the curtain airbag harness connector (A).

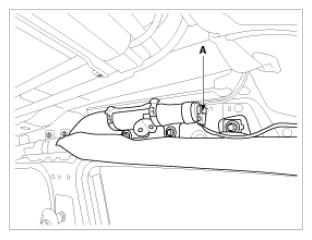

    Fig 1: Identifying Curtain Airbag Harness Connector
    G08807517Courtesy of HYUNDAI MOTOR AMERICA
  4. After loosening the mounting bolts remove the curtain airbag.

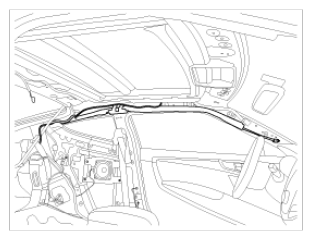

    Fig 2: Identifying Curtain Airbag Wiring Harness
    G08807518Courtesy of HYUNDAI MOTOR AMERICA
