Circuit Diagram

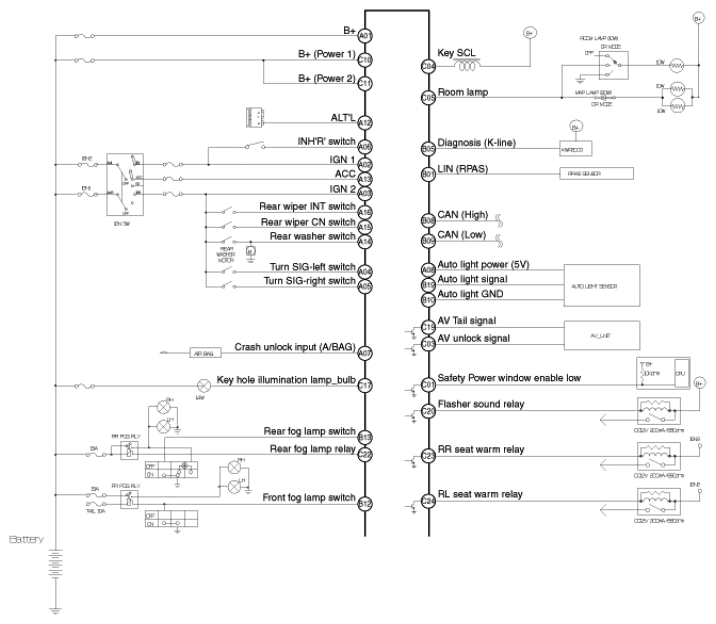

Fig 1: BCM Circuit Diagram (1 Of 2)

G06873590

Courtesy of HYUNDAI MOTOR CO.

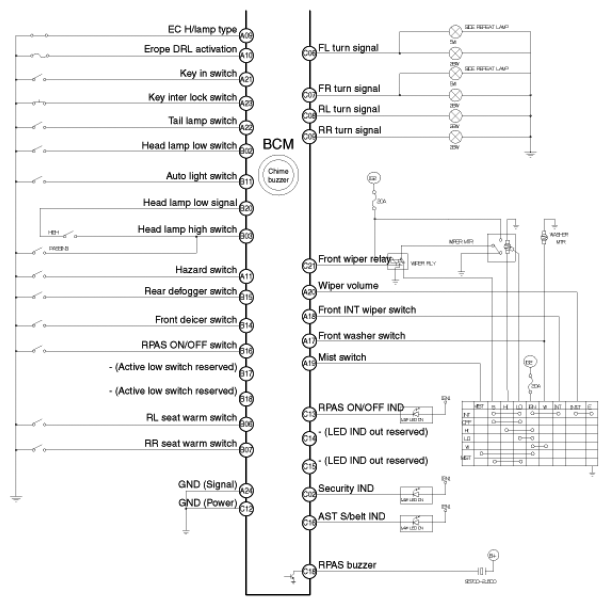

Fig 2: BCM Circuit Diagram (2 Of 2)

G06873591

Courtesy of HYUNDAI MOTOR CO.
