Remote Engine Start - Control Module, Fuse & Jumper Settings (16-AC-001)

Publication date: 2016-09-01
Reference number: 16-AC-001

REMOTE ENGINE START - CONTROL MODULE, FUSE & JUMPER SETTINGS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 16-AC-001, Date of Issue: September, 2016

HYUNDAI:	2011-2016 Elantra (MD/UD); 2013-2016 Elantra GT (GD), Santa Fe Sport (AN) & Santa Fe (NC); 2010-2012 Santa Fe (CM); 2011-2014 Sonata (YF); 2010-2015 Tucson (LM); 2012-2016 Veloster (FS)
GROUP:	ACCESSORY

DESCRIPTION

This bulletin describes the procedure to verify that the fuse and jumper settings for the Remote Engine Start Control Module are set for the applicable vehicle, and if necessary, how to make adjustments to these settings.

APPLICABLE VEHICLES

Applicable Vehicles:

2011-2016 Elantra (MD/UD)
2013-2016 Elantra GT (GD)
2010-2012 Santa Fe (CM)
2013-2016 Santa Fe Sport (AN) & Santa Fe (NC)
2011-2014 Sonata (YF)
2010-2015 Tucson (LM)
2012-2016 Veloster (FS)

PARTS & WARRANTY INFORMATION

PART NAME	PART NUMBER	OP CODE	OP TIME
CONTROL MODULE	00056 ADU20	A0603R03	0.6

SERVICE PROCEDURE

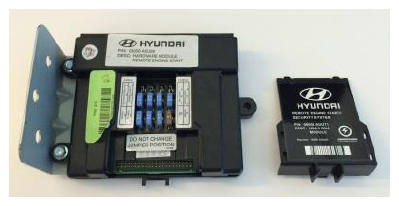

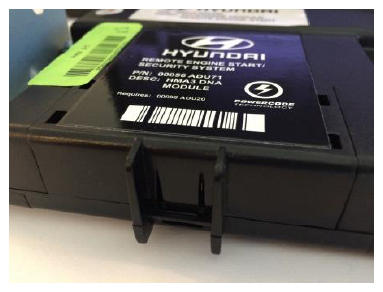

Remove the DNA Module (cover) from the Remote Engine Start Control Module assembly.

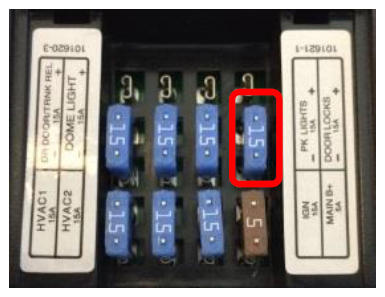

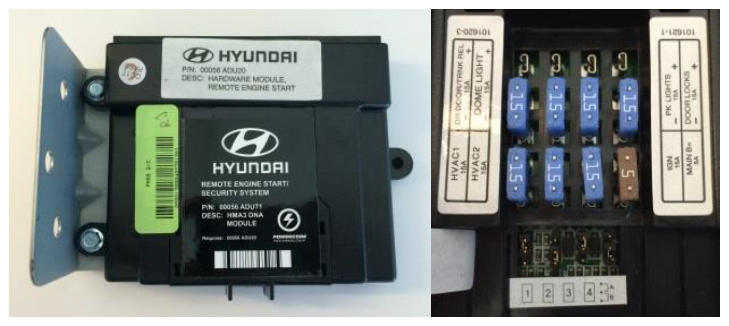

Verify that the fuses in the Remote Engine Start Control Module are installed per the fuse and jumper reference drawing.
NOTE: The images represent examples and actual settings may vary according to the specific vehicle. Refer to SERVICE PROCEDURE of this TSB for the appropriate settings according to the applicable vehicle.

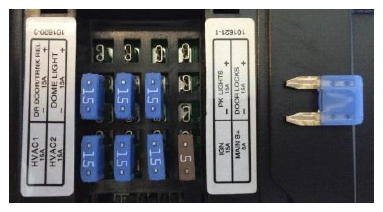

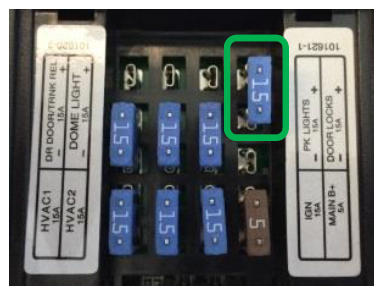

If necessary, pull the fuse(s) out and reposition according to the fuse and jumper reference drawing for the applicable vehicle.

CAUTION: Do not damage the fuse when handling. Verify that the fuse is in good condition prior to reinstallation.
Verify that the location of the repositioned fuse(s) matches the fuse and jumper reference drawing, and confirm that each fuse is securely reinstalled in the Remote Engine Start Control Module.

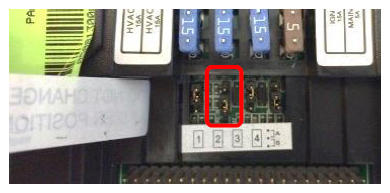

Remove the warning label covering the jumpers and verify that the jumpers in the Remote Engine Start Control Module are installed per the fuse and jumper reference drawing.
NOTE: The images represent examples and actual settings may vary according to the specific vehicle. Refer to SERVICE PROCEDURE of this TSB for the appropriate settings according to the applicable vehicle.

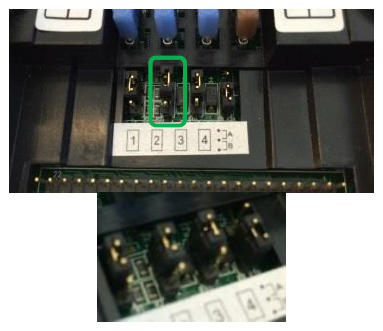

If necessary, pull the jumper(s) out and reposition according to the fuse and jumper reference drawing for the applicable vehicle.

CAUTION: Do not damage the jumper when handling. Verify that the jumper is in good condition prior to reinstallation. Ensure that the jumper is reinstalled in the correct orientation.

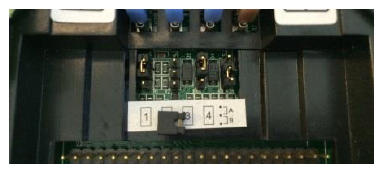

Verify that the location of the repositioned jumper(s) matches the fuse and jumper reference drawing, and confirm that each jumper is securely reinstalled within the Remote Engine Start Control Module in the correct orientation.

CAUTION: Ensure that the jumper is reinstalled in the correct orientation.
Reinstall the DNA module (cover) on the Remote Engine Start Control Module.
Test Remote Engine Start system for proper operation. (Function Check)

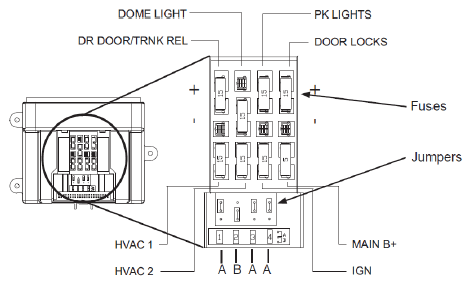

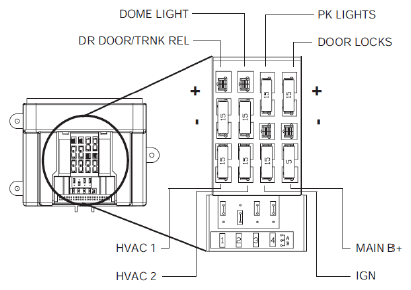

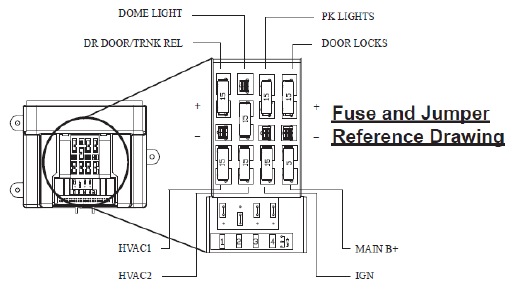

FUSE AND JUMPER REFERENCE DRAWINGS

2011MY-2016MY Elantra [MD/UD]
2013MY-2016MY Elantra GT [GD]
2010MY-2012MY Santa Fe [CM]
2013MY-2016MY Santa Fe Sport/Santa Fe [AN/NC]
2011MY-2014MY Sonata [YF]
2010MY-2015MY Tucson [LM]
2012MY-2016MY Veloster [FS]

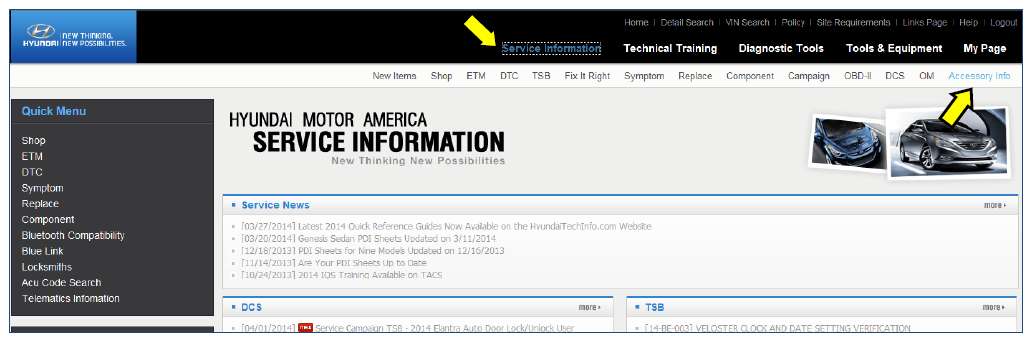

NOTE: Installation instructions can also be found online at: www.hyundaitechinfo.com Click on "Service Information", and then click on "Accessory Info".

If additional assistance is required, contact Hyundai Techline.

For faster service, please complete the Techline Diagnostic Sheet prior to calling.

The Techline Diagnostic Sheet is found online.

Click on "Technical Training", and then click on "Techline Procedures".
