Circuit Diagram

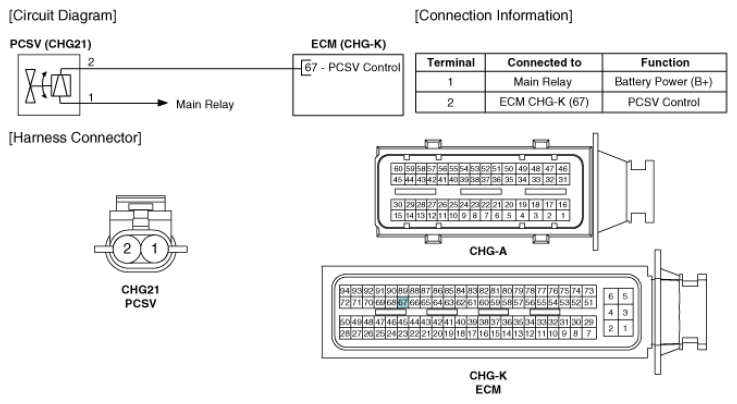

Fig 1: Purge Control Solenoid Valve (PCSV) Circuit Diagram

G07744150

Courtesy of HYUNDAI MOTOR CO.
