Circuit Diagram

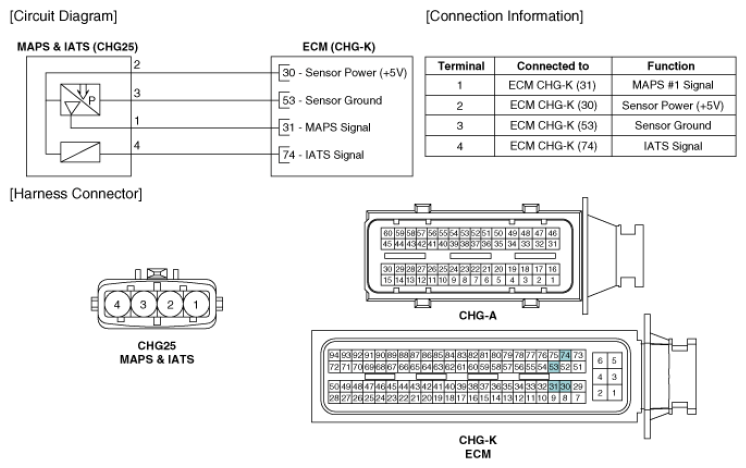

Fig 1: Manifold Absolute Pressure Sensor Circuit Diagram

G07744112

Courtesy of HYUNDAI MOTOR CO.
