Circuit Diagram

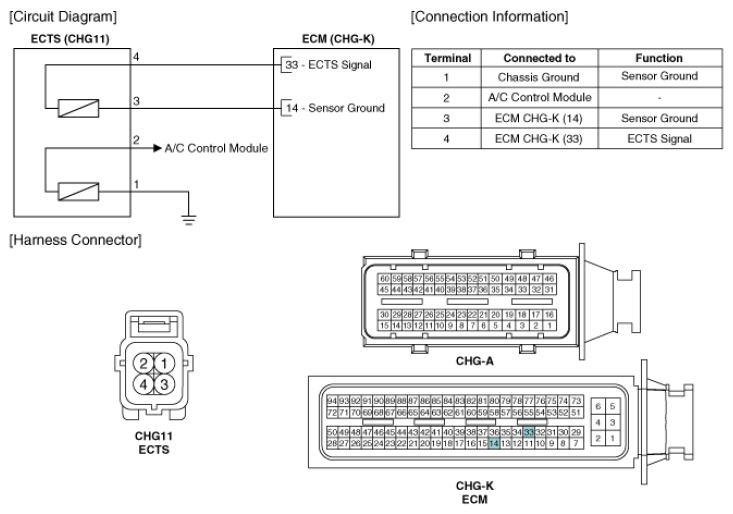

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram

G07744118

Courtesy of HYUNDAI MOTOR CO.
