Components and Components Location: Components

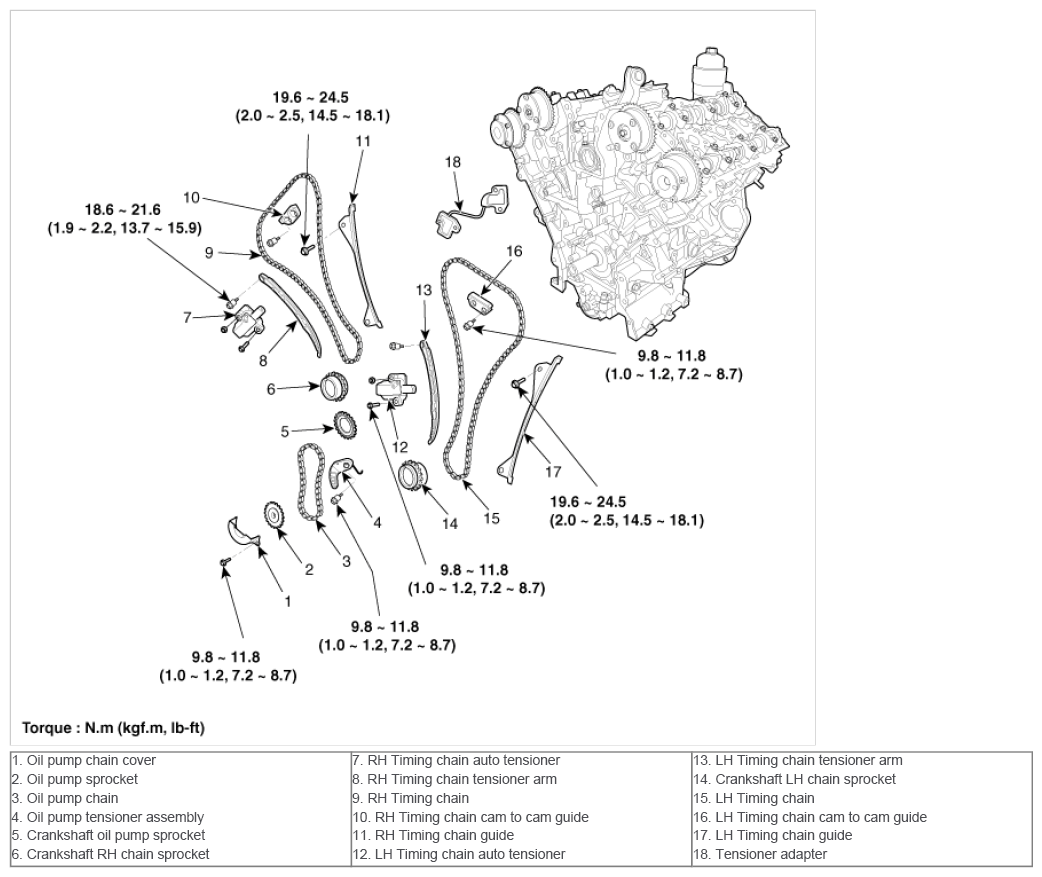

Fig 1: Timing Chain Replacement Components With Torque Specifications

G09267218

Courtesy of HYUNDAI MOTOR AMERICA
