Signal Waveform & Data

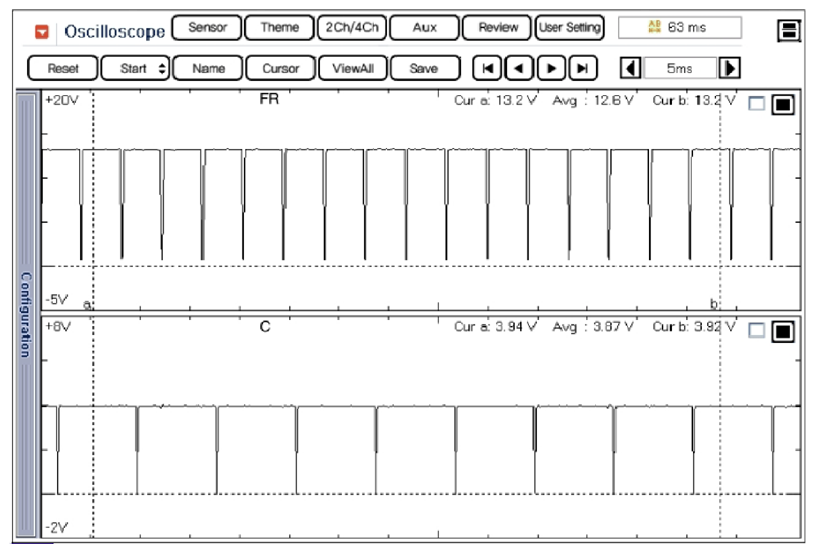

Fig 1: Display - Oscilloscope Signal Waveform Screen (Idle Status)

Courtesy of HYUNDAI MOTOR AMERICA

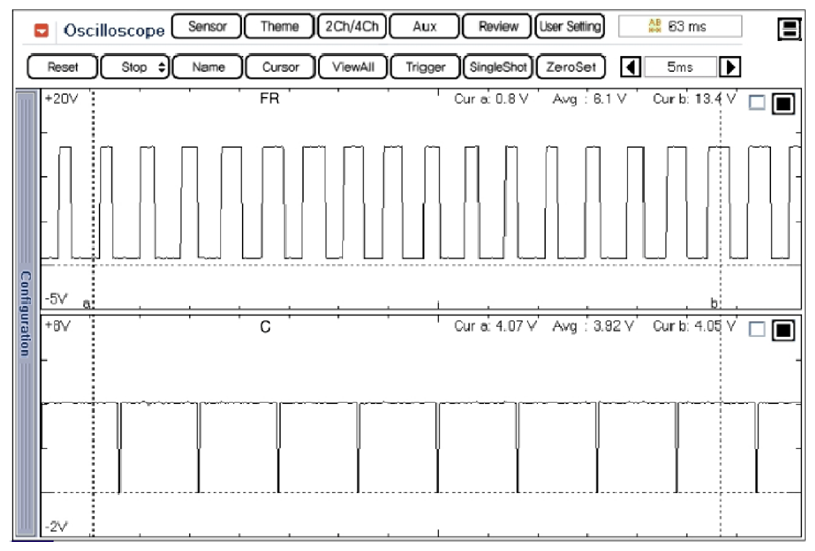

Fig 2: Display - Oscilloscope Signal Waveform Screen Electrical Load (Head Lamp, Defrost ON)

Courtesy of HYUNDAI MOTOR AMERICA

Duty (+) from FR terminal is increased if electrical loads are ON (Head Lamp and Defrost are ON)

ECM controls generation of alternator with duty from FR terminal when electrical Loads turn on
