Component Inspection

■ OTS Simulation Inspect

1. IG KEY OFF.
2. Disconnect OTS connector.
3. IG KEY ON.
4. Perform voltage simulation to signal circuit of OTS.

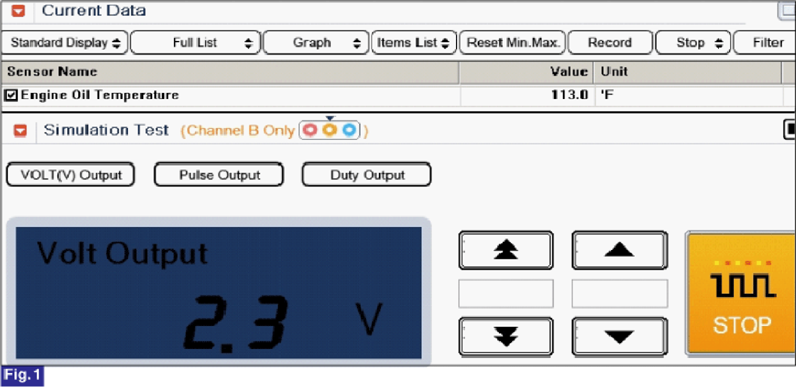

   Fig 1: Display - Simulation Test Screen (2.3V)

   Courtesy of HYUNDAI MOTOR AMERICA

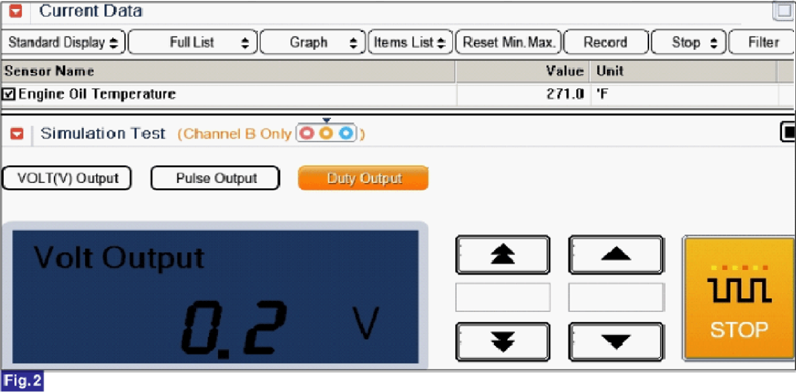

   Fig 2: Display - Simulation Test Screen (0.2V)

   Courtesy of HYUNDAI MOTOR AMERICA
5. Does the simulation frequency make AAT value change?

   YES

   • Go to next step as below.

   NO

   • Substitute with a known-good OTS and check for proper operation. If the problem is corrected, replace OTS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Resistance Inspection

1. Ignition "OFF"
2. Measure resistance between power terminal and control terminal of the sensor connector (Component side)

   Specification

   OTS Temperature		Resistance (KΩ)
   °C	°F
   -40	-40	52.15
   -20	-4	16.52
   0	32	6
   20	68	2.45
   40	104	1.11
   60	140	0.54
   80	176	0.29

3. Is resistance within the specification?

   YES

   • Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good RCV and check for proper operation.

     If the problem is corrected, replace RCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
