Adaptive Front Lighting Module Connector End View (M02)

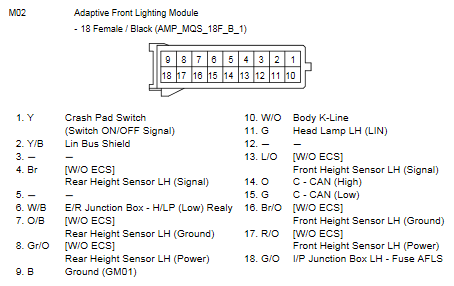

Fig 1: Adaptive Front Lighting Module Connector End View (M02)

G10733844

Courtesy of HYUNDAI MOTOR AMERICA
