ECS Control Module Connector End View (F01-A)

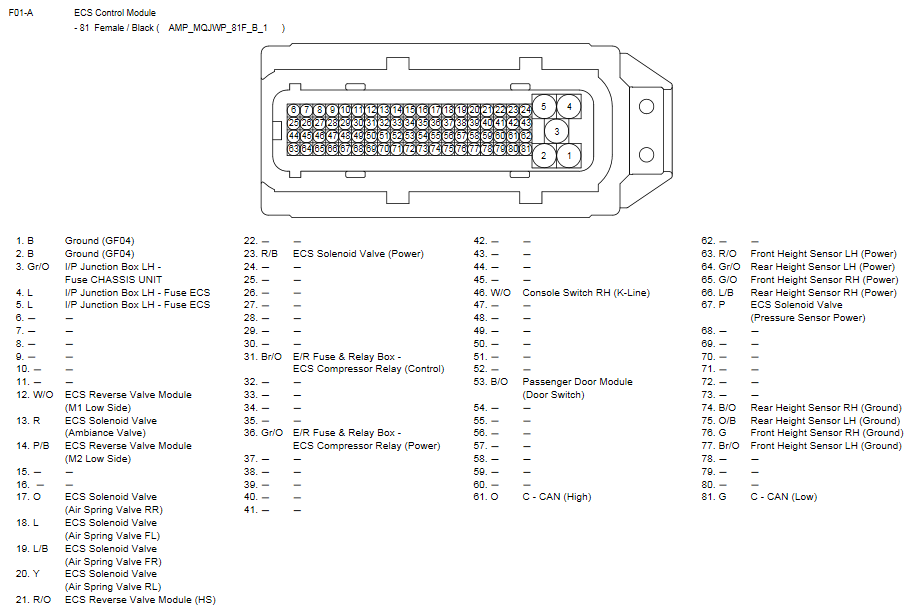

Fig 1: ECS Control Module Connector End View (F01-A)

G10734030

Courtesy of HYUNDAI MOTOR AMERICA
