Driver IMS Control Module Connector End View (S16-C)

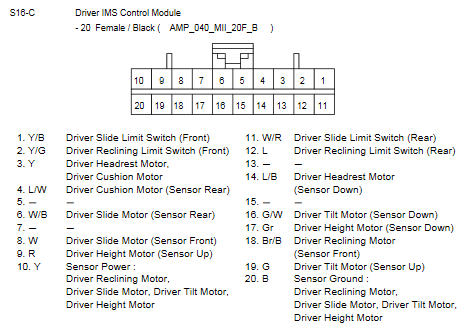

Fig 1: Driver IMS Control Module Connector End View (S16-C)

G10734204

Courtesy of HYUNDAI MOTOR AMERICA
