Control Circuit Inspection

  1. With ignition OFF, disconnect alternator connector.
  2. Ignition "ON" & Engine "OFF"
  3. Measure voltage between FR terminal of the alternator harness connector and chassis ground.

    Specification:  Approx. 9~10V

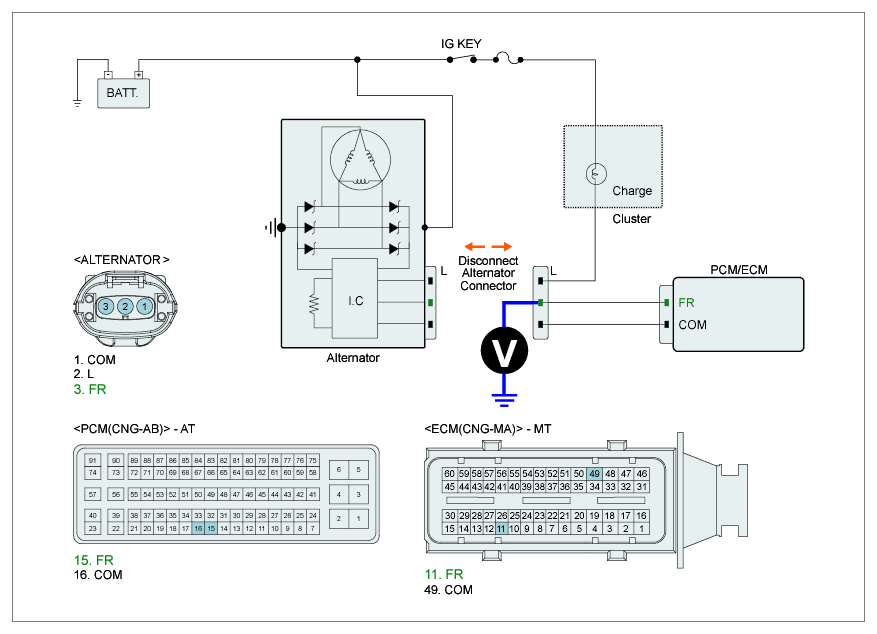

    Fig 1: Measuring Voltage Between FR Terminal Of Alternator Connector And Chassis Ground
    G09635455Courtesy of HYUNDAI MOTOR AMERICA
  4. Is voltage within the specification?

    YES

    • Go to next step as below.

    NO
