Variant coding Procedure

On-Line type on GDS
1. With the ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.
1. Initial ACU Variant Coding screen
  NOTE: OEM Graphics are currently not available from manufacturer.
2. VIN Code entering screen
  NOTE: OEM Graphics are currently not available from manufacturer.
3. Variant coding's proceeding screen-1
  NOTE: OEM Graphics are currently not available from manufacturer.

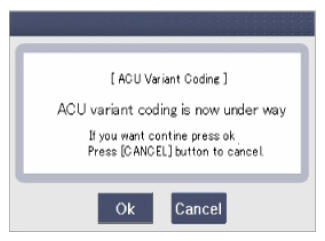

4. Variant coding's proceeding screen-2

  Fig 1: Display - Variant Coding Proceeding Screen 2
  Courtesy of HYUNDAI MOTOR AMERICA
5. Variant coding is completed
  NOTE: OEM Graphics are currently not available from manufacturer.
NOTE:

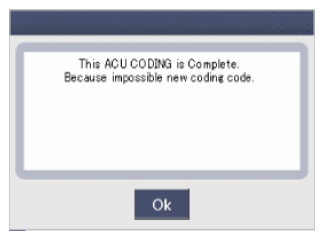

1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

  Fig 2: Display - ACU Coding Completion Screen
  Courtesy of HYUNDAI MOTOR AMERICA

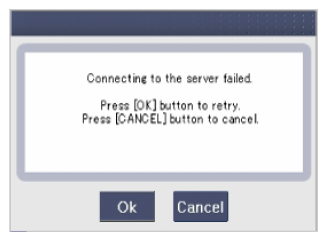

2. If communication fails, the following screen will appear.

  Fig 3: Display - ACU Coding Communication Failure Screen
  Courtesy of HYUNDAI MOTOR AMERICA
Off-line type on GDS (This can be used when not connecting to internet)
1. Initial ACU Variant Coding screen
  NOTE: OEM Graphics are currently not available from manufacturer.
2. ACU Coding Code entering screen
  NOTE: OEM Graphics are currently not available from manufacturer.
3. Screen of rechecking ACU Coding code's entering
  NOTE: OEM Graphics are currently not available from manufacturer.
4. Variant coding's proceeding screen-1
  NOTE: OEM Graphics are currently not available from manufacturer.

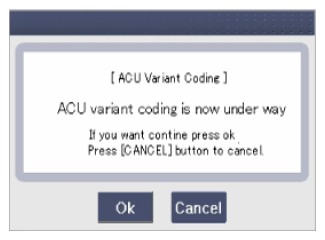

5. Variant coding's proceeding screen-2

  Fig 4: Display - Variant Coding Proceeding Screen 2
  Courtesy of HYUNDAI MOTOR AMERICA
6. Variant coding is completed
  NOTE: OEM Graphics are currently not available from manufacturer.
NOTE:

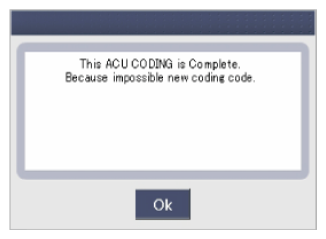

1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

  Fig 5: Display - ACU Coding Completion Screen
  Courtesy of HYUNDAI MOTOR AMERICA
