Repair procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to "FLOOR CONSOLE ")

  4. Remove the rear air vent duct (A).

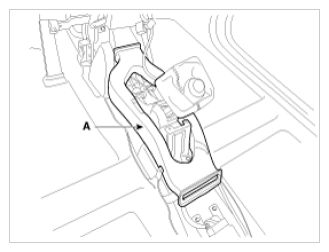

    Fig 1: Identifying Rear Air Vent Duct
    G09886559Courtesy of HYUNDAI MOTOR AMERICA
  5. Pull up the lock, of the SRSCM connector, the disconnect the connector (A).

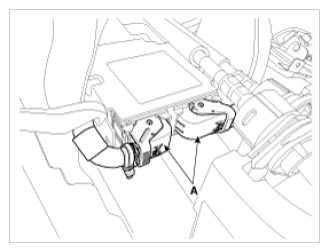

    Fig 2: Identifying Connector
    G09886560Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the SRSCM mounting bolt and nuts from the SRSCM, then remove the SRSCM.
