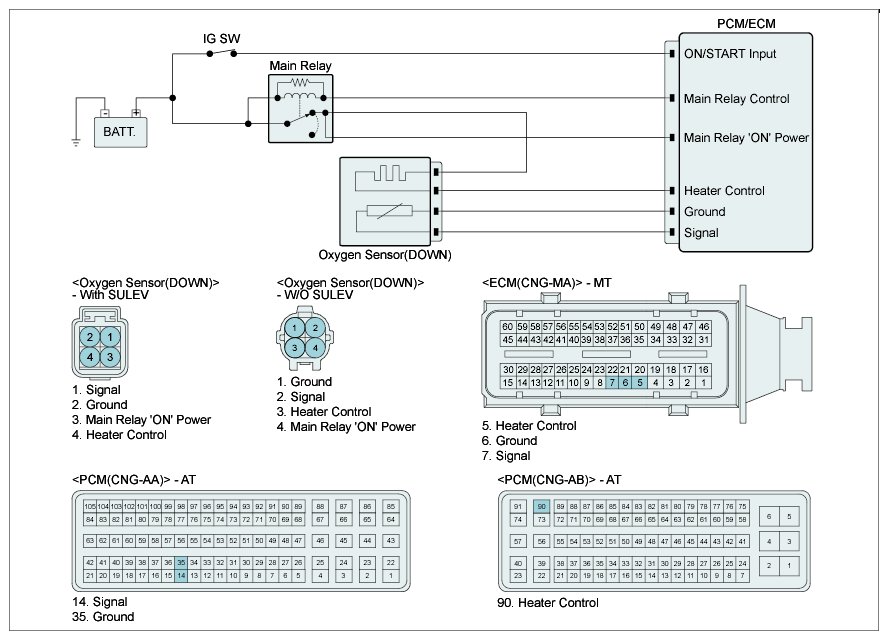

Home >> Hyundai >> 2013 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC P0136: O2 Sensor Circuit (Bank 1/Sensor 2) >> General Information >> Diagnostic Circuit Diagram
