Component Inspection

  1. Ignition "OFF".
  2. Disconnect IATS connector.
  3. Measure the resistance between signal terminal and ground terminal of the sensor connector (Component side).
    RESISTANCE AND TEMPERATURE SPECIFICATION

    Temp. (°C) Temp. (°F) Resistance (kΩ)
    -10 14 8.5 ~ 9.7
    0 32 5.4 ~ 6.1
    10 50 3.5 ~ 3.9
    20 68 2.3 ~ 2.5
    30 86 1.6 ~ 1.7
    80 176 Approx. 0.3

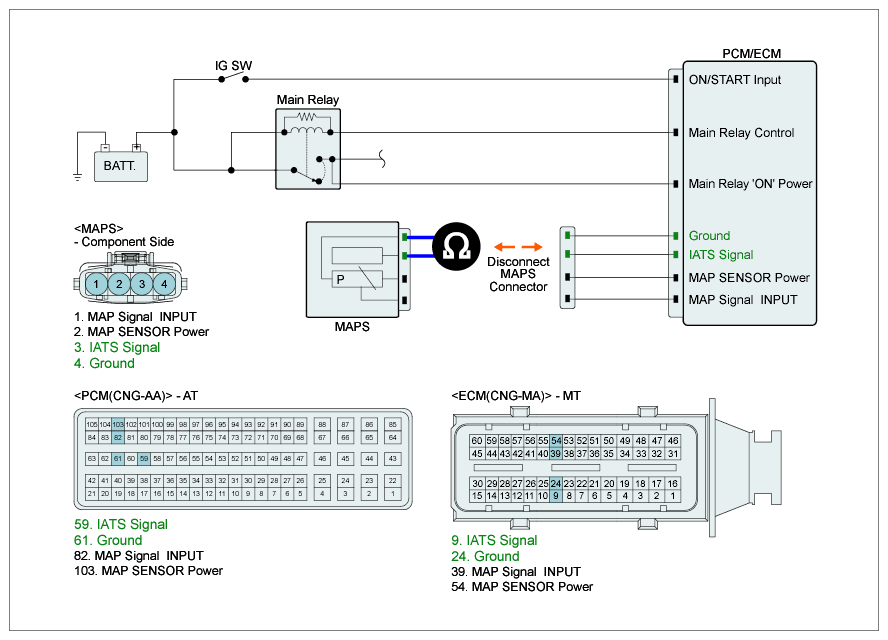

    Fig 1: MAPS - Circuit Diagram
    G09907356Courtesy of HYUNDAI MOTOR AMERICA
  4. Is resistance within the specification?

    YES

    • Check for poor connection between PCM/ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Check IATS for contamination, deterioration, or damage. Substitute with a known-good IATS and check for proper operation. If the problem is corrected, replace IATS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
