Circuit Diagram: (M/T)

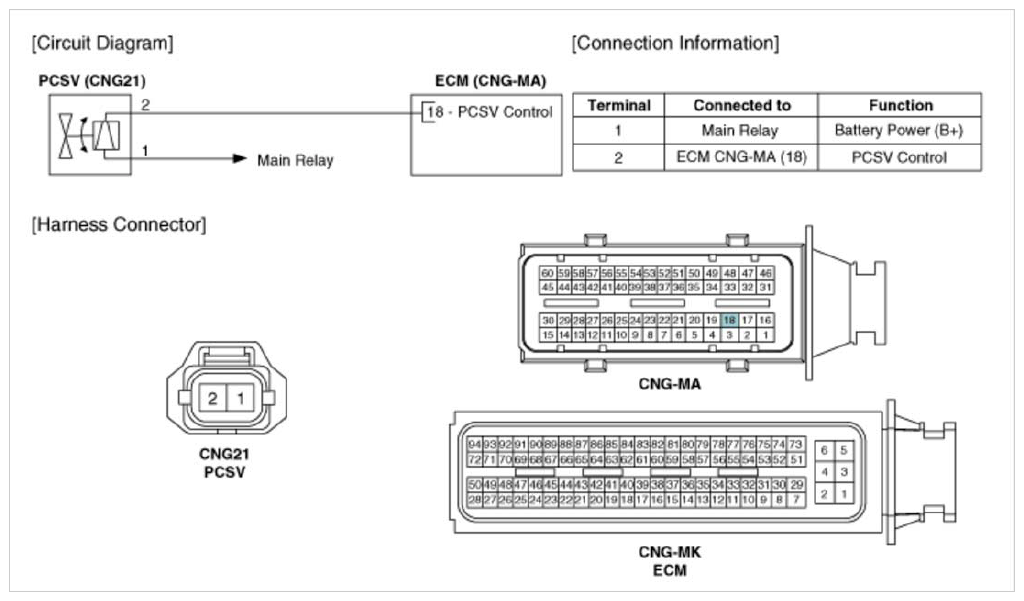

Fig 1: PCSV Schematic Diagrams (M/T)

G09885942

Courtesy of HYUNDAI MOTOR AMERICA
