Trunk antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to "REAR TRANSVERSE TRIM ")

  3. Disconnect the connector, then remove the trunk antenna (A) with loosening 2 nuts.

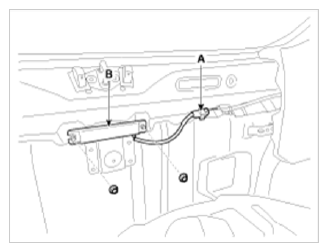

    Fig 1: Identifying Trunk Antenna
    G09887385Courtesy of HYUNDAI MOTOR AMERICA
