Smart key unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to "GLOVE BOX HOUSING ")

  3. Remove the smart key unit (A) with loosening bolt and nut, then disconnect the connector.

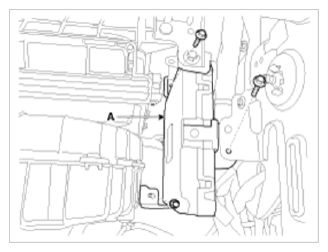

    Fig 1: Identifying Smart Key Unit And Screws
    G09887382Courtesy of HYUNDAI MOTOR AMERICA
