Monitor GDS Data

WARNING: This page is about a different car, the 2014 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to "DATA LINK CONNECTOR (DLC)".
  2. IG key "ON", Engine "OFF".
  3. Select "Diagnostic Trouble Codes (DTC)" with GDS.
  4. Monitor the diagnostic trouble code and present of the trouble code.
  5. Erase the DTC.

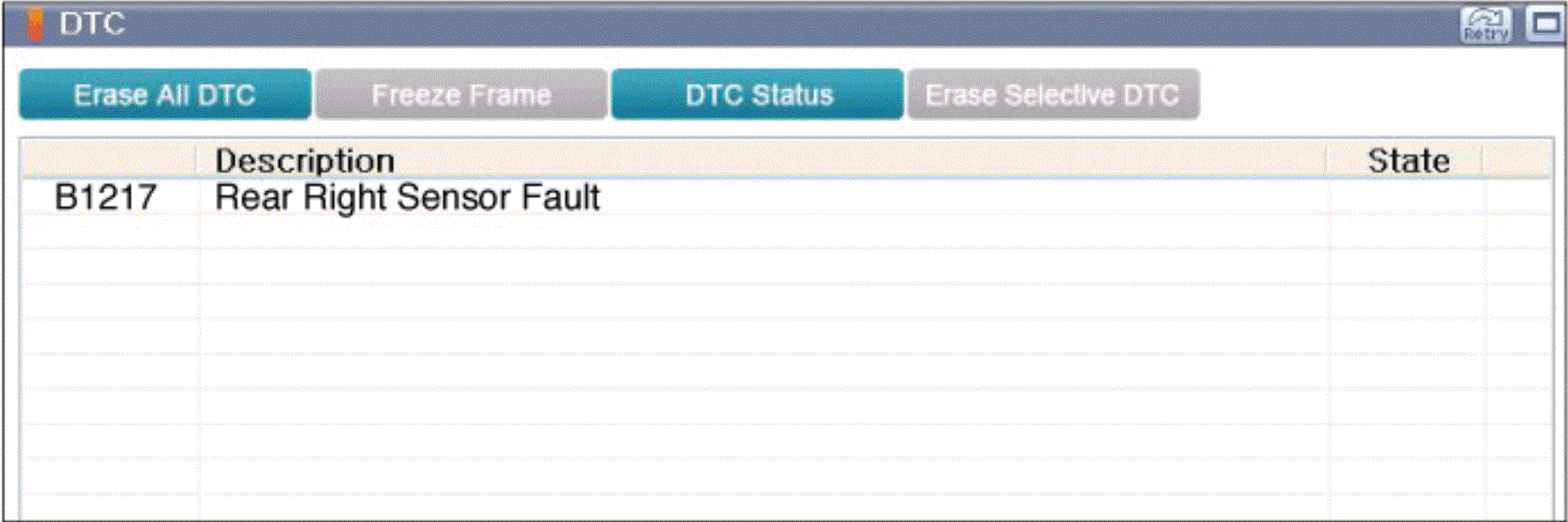

    Fig 1: Display - Erasing Code With Scantool
    G00559865Courtesy of HYUNDAI MOTOR AMERICA
  6. Is the DTC set again?
    YES
    NO
    • Fault is intermittent caused by poor contact in "BCM"'s connector or was repaired and "BCM" memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    • Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
