Signal Circuit Inspection

Check signal circuit voltage
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector.
3. IG key ON.
4. Measure voltage between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and chassis ground.
  Specification: 4.8V~5.1V

  2013

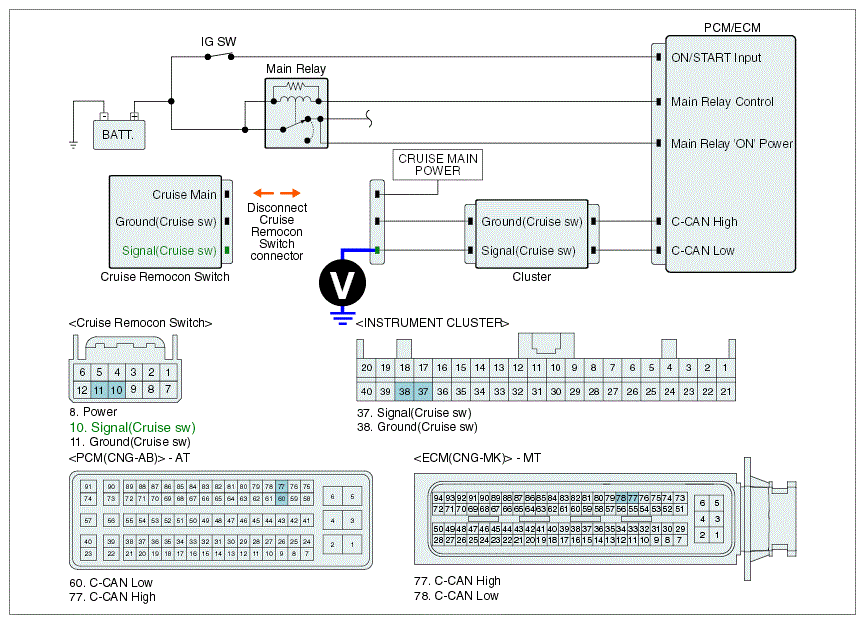

  Fig 1: Checking Signal Circuit Voltage
  Courtesy of HYUNDAI MOTOR AMERICA

  2014

  Refer to appropriate SYSTEM WIRING DIAGRAM article
5. Is the measured value within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Go to " CHECK SHORT IN SIGNAL CIRCUIT" as follows.
Check short in signal circuit
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector and Cluster connector.
3. Check resistance between 'Signal (Cruise sw)' terminal and 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector.
4. Check resistance between 'Signal (Cruise sw)' terminal and 'Ground (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector.
  Specification: Infinite

  2013

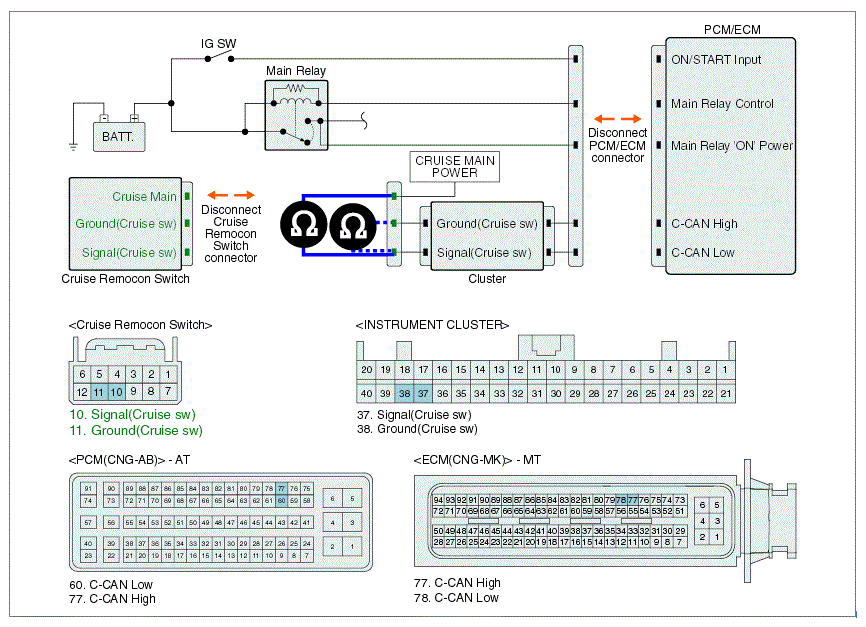

  Fig 2: Checking Resistance Between Cruise Remocon Switch Connector Signal Terminal And Ground
  Courtesy of HYUNDAI MOTOR AMERICA

  2014

  Refer to appropriate SYSTEM WIRING DIAGRAM article
5. Is the measured value within specification?
  YES
  - Go to " CHECK OPEN IN SIGNAL CIRCUIT" as follows.
  NO
  - Repair short in signal circuit, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check open in signal circuit
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector and PCM/ECM connector.
3. Measure resistance between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Signal (Cruise sw)' terminal of PCM/ECM connector.
  Specification: Below 1.0Ω

  2013

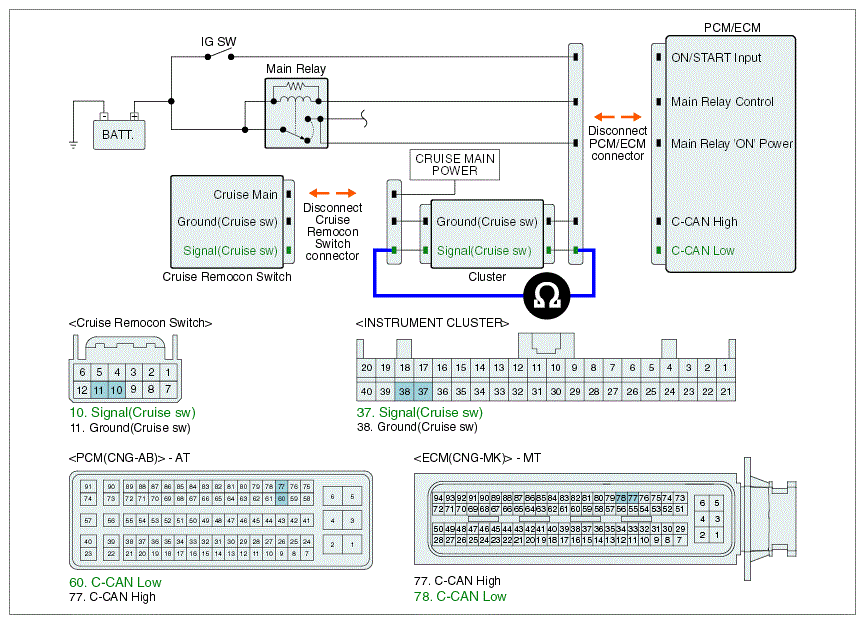

  Fig 3: Checking Open In Signal Circuit
  Courtesy of HYUNDAI MOTOR AMERICA

  2014

  Refer to appropriate SYSTEM WIRING DIAGRAM article
4. Is the measured value within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair open between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Signal (Cruise sw)' terminal of PCM/ECM connector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
