Power Circuit Inspection

Check power circuit voltage
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector.
3. IG key ON.
4. Measure voltage between 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector and chassis ground.
  Specification: 11.5V~13.0V

  2013

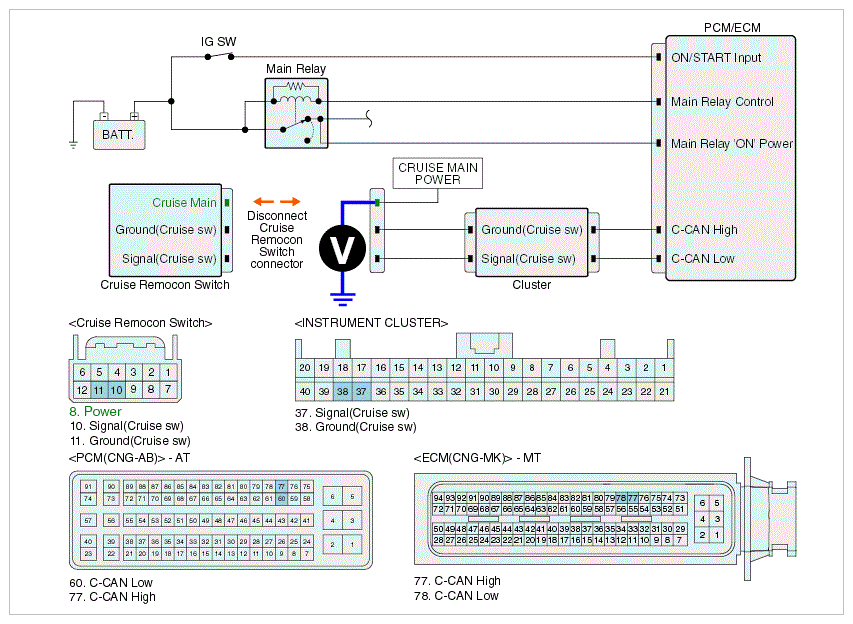

  Fig 1: Measuring Voltage Between Cruise Remocon Switch Harness Connector Terminal And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA

  2014

  Refer to appropriate SYSTEM WIRING DIAGRAM article
5. Is the measured value within specification?
  YES
  - Go to "SIGNAL CIRCUIT INSPECTION ".
  NO
  - Repair short to ground/open between 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Cruise supply' terminal of PCM/ECM harness connector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
