Diagnostic Circuit Diagram 2013

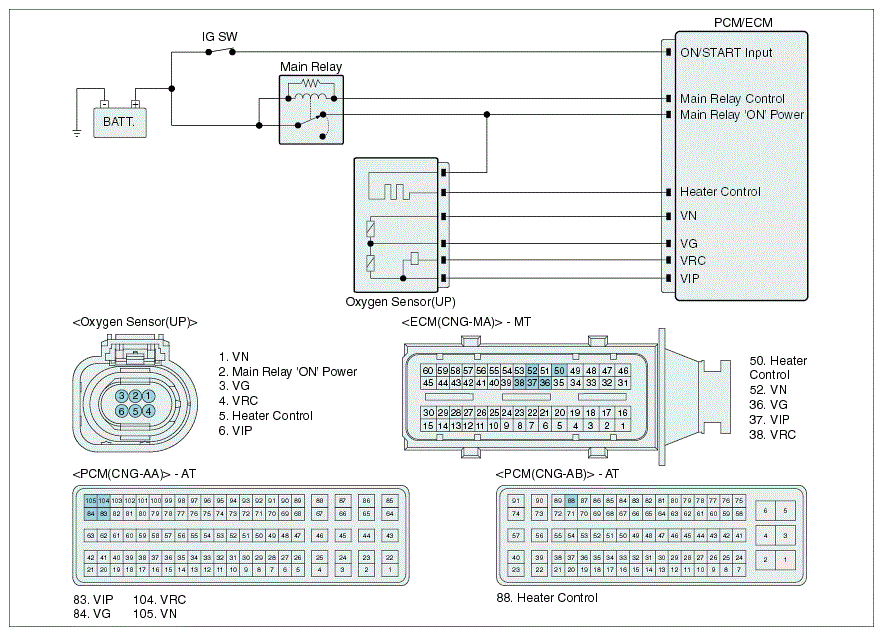

Fig 1: Oxygen Sensor (UP) Circuit Diagram
G10246859Courtesy of HYUNDAI MOTOR AMERICA
