Small Junction Box Connector End View (I/P-C)

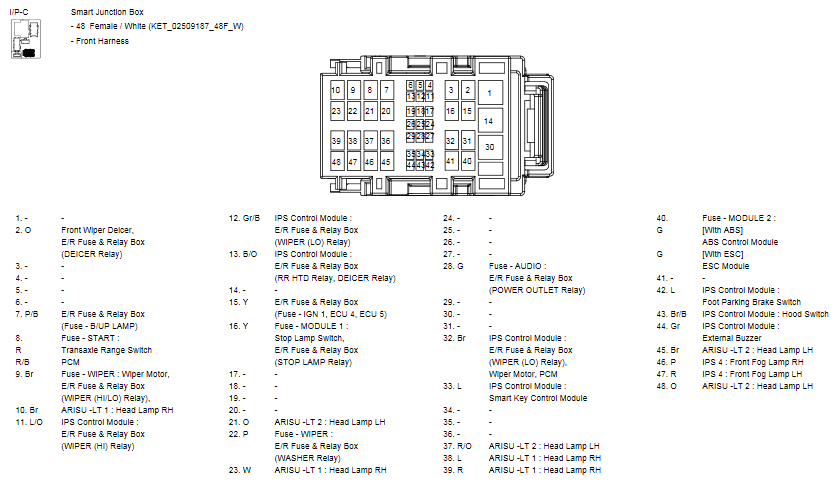

Fig 1: Small Junction Box Connector End View (I/P-C)

G10775630

Courtesy of HYUNDAI MOTOR AMERICA
