Monitor DTC Status

Check DTC Status
1. Connect scantool to Data Link Connector (DLC).
2. IG "ON".
3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
4. Read "DTC Status" parameter.

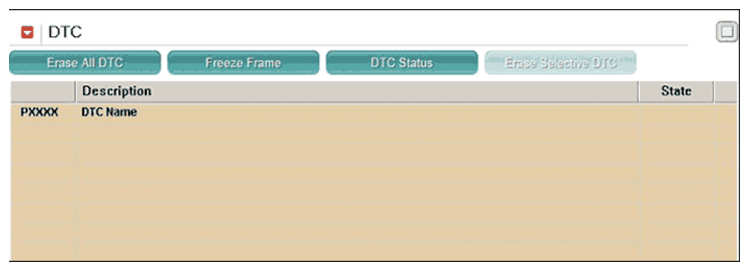

  Fig 1: Scantool Display - DTC
  Courtesy of HYUNDAI MOTOR CO.

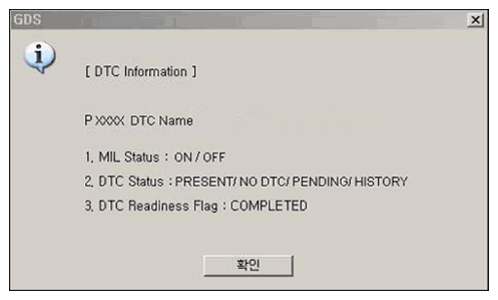

  Fig 2: Scantool Display - GDS
  Courtesy of HYUNDAI MOTOR CO.
5. Is parameter displayed "Present fault"?
  YES
  1. Go to TERMINAL AND CONNECTOR INSPECTION procedure.
  NO
  1. Fault is intermittent caused by PCM memory was not cleared after repair.
  Erase DTC and drive the vehicle to satisfy the enable condition then, go to COMPONENT INSPECTION procedure.
